BC550CBU - Fairchild

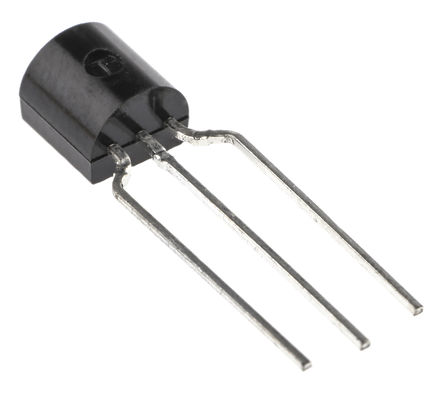

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC550CBU
Manufacturer

Fairchild
ChipWorker Part#

CW59974303
Category

BJT Transistor, BJT
Package

TO-226-3
Description

BC550 Series 45V 100mA Through Hole NPN Epitaxial Silicon Transistor - TO-92-3
Documentation

Datasheet

BC550CBU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BC550CBU Specifications

Attribute	Attribute Value

Part Number	BC550CBU
Manufacturer	Fairchild
ChipWorker Part#	CW59974303
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Frequency	300 MHz
Voltage Rating (DC)	45.0 V
Current Rating	100 mA
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.1A
hFE Min	420 @2mA, 5V
Input Power (Max)	500 mW
DC Current Gain (hFE)	420
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Length	4.58 mm
Size-Width	3.86 mm
Size-Height	5.33 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The BC550CBU is a NPN epitaxial silicon Bipolar Transistor suitable for switching and amplifier applications.
Low noise
Complement to BC560

expand all
