BC846CMTF - Fairchild

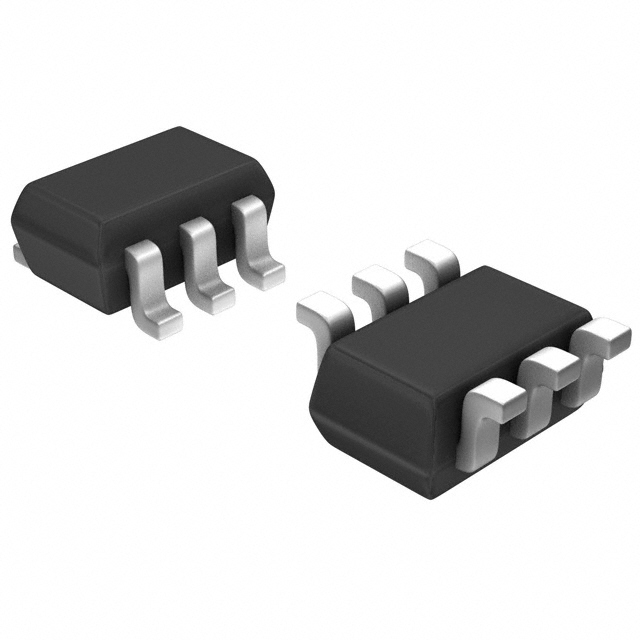

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC846CMTF
Manufacturer

Fairchild
ChipWorker Part#

CW7935942
Category

BJT Transistor, BJT
Package

SOT-23-3
Description

Trans GP BJT NPN 65V 0.1A 3Pin SOT-23 T/R
Documentation

Datasheet

BC846CMTF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BC846CMTF Specifications

Attribute	Attribute Value

Part Number	BC846CMTF
Manufacturer	Fairchild
ChipWorker Part#	CW7935942
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	300 MHz
Voltage Rating (DC)	65.0 V
Current Rating	100 mA
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	310 mW
Breakdown Voltage (Collector to Emitter)	65 V
Continuous Collector Current	0.1A
hFE Min	420 @2mA, 5V
Input Power (Max)	310 mW
DC Current Gain (hFE)	420
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	310 mW
	expand all
Size-Length	2.92 mm
Size-Width	1.3 mm
Size-Height	0.93 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The BC846CMTF is a NPN epitaxial silicon Bipolar Transistor suitable for automatic insertion in thick and thin-film circuits, switching and amplifier applications.
Complement to BC856
