BC857S - Fairchild

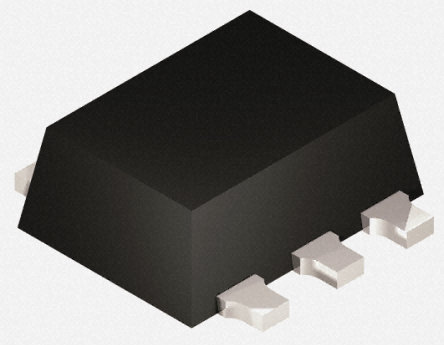

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC857S
Manufacturer

Fairchild
ChipWorker Part#

CW43402136
Category

BJT Transistor, BJT
Package

SC-70-6
Description

Trans GP BJT PNP 45V 0.2A 6Pin SC-70 T/R
Documentation

Datasheet

BC857S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BC857S Specifications

Attribute	Attribute Value

Part Number	BC857S
Manufacturer	Fairchild
ChipWorker Part#	CW43402136
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Frequency	200 MHz
Voltage Rating (DC)	-45.0 V
Current Rating	-200 mA
Number of Positions	6 Position
Polarity	PNP
Power Dissipation	300 mW
Breakdown Voltage (Collector to Emitter)	45 V
hFE Min	125 @2mA, 5V
Input Power (Max)	300 mW
DC Current Gain (hFE)	125
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR

Product Description

The BC857S is a PNP multi-chip Bipolar Transistor Array designed for general purpose amplifier applications at collector currents to 200mA.
-55 to 150°C Junction temperature range
The pinouts are symmetrical, pin-1 and pin-4 are interchangeable. Units inside the carrier can be of either orientation and will not affect the functionality of the device.
