BCX70J ,BJT Transistor, BJT - Fairchild

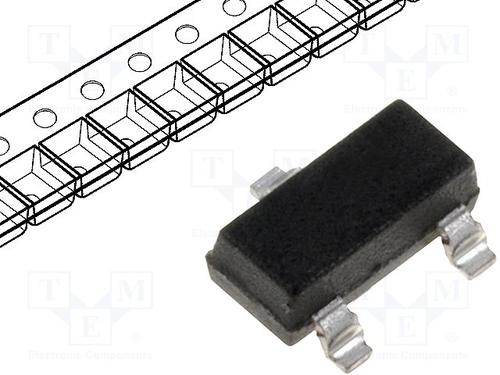

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

88 points

Part No

BCX70J
Manufacturer

Fairchild
ChipWorker Part#

CW39202794
Category

BJT Transistor, BJT
Package

SOT-23-3
Description

Trans GP BJT NPN 45V 0.2A 350mW 3Pin SOT-23 T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.03

Buy BCX70J

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BCX70J Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BCX70J Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BCX70J
Manufacturer	Fairchild
ChipWorker Part#	CW39202794
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	125 MHz
Voltage Rating (DC)	45.0 V
Current Rating	200 mA
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	350 mW
Gain Bandwidth Product	125 MHz
Breakdown Voltage (Collector to Emitter)	45 V
hFE Min	250 @2mA, 5V
hFE Max	460
Input Power (Max)	350 mW
DC Current Gain (hFE)	250
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350 mW
	expand all
Size-Length	2.92 mm
Size-Width	1.3 mm
Size-Height	0.93 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The BCX70J is a NPN silicon epitaxial General Purpose Transistor offers 200mA collector current and 45V collector-base voltage.
-55 to 150°C Operating junction temperature range
