BD137 - ON Semiconductor

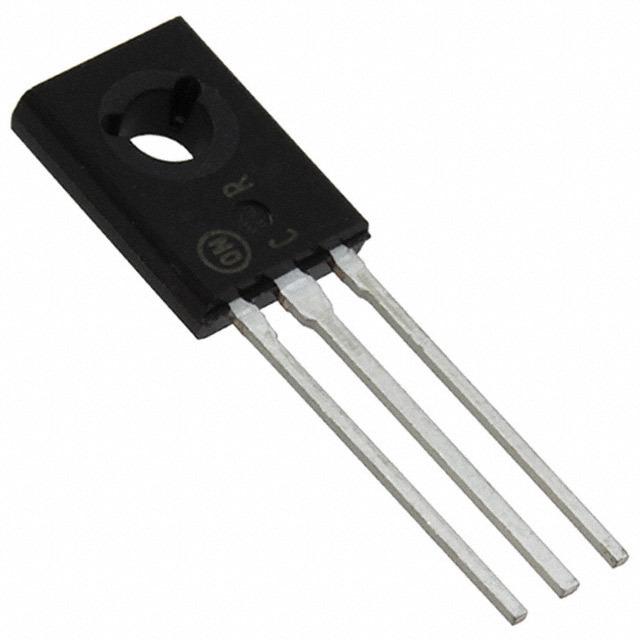

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BD137
Manufacturer

ON Semiconductor
ChipWorker Part#

CW87871913
Category

BJT Transistor, BJT
Description

TO-225-3 NPN 60V 1.5A
Documentation

Datasheet

BD137 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BD137 Specifications

Attribute	Attribute Value

Part Number	BD137
Manufacturer	ON Semiconductor
ChipWorker Part#	CW87871913
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Voltage Rating (DC)	60.0 V
Current Rating	1.50 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	1.5A
hFE Min	40 @150mA, 2V
hFE Max	250
Input Power (Max)	1.25 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1250 mW
	expand all
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Box
Minimum Packing Quantity	500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

**1.5 A POWER TRANSISTORS NPN SILICON 45, 60, 80 V, 12.5 W**
This series of plastic, medium−power silicon NPN transistors are designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.
Features
•High DC Current Gain
•BD 135, 137, 139 are complementary with BD 136, 138, 140
•These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
