BD140 - ST Microelectronics

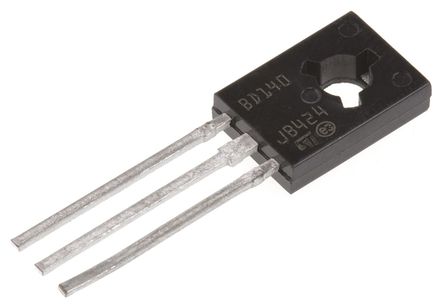

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BD140
Manufacturer

ST Microelectronics
ChipWorker Part#

CW254450
Category

BJT Transistor, BJT
Package

TO-126-3
Description

Trans GP BJT PNP 80V 3A 1250mW 3Pin(3+Tab) SOT-32 Tube
Documentation

Datasheet

BD140 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BD140 Specifications

Attribute	Attribute Value

Part Number	BD140
Manufacturer	ST Microelectronics
ChipWorker Part#	CW254450
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Frequency	50 MHz
Voltage Rating (DC)	-80.0 V
Current Rating	-1.50 A
Number of Positions	3 Position
Polarity	PNP, P-Channel
Power Dissipation	1.25 W
Breakdown Voltage (Collector to Emitter)	80 V
hFE Min	40 @150mA, 2V
hFE Max	250
Input Power (Max)	1.25 W
DC Current Gain (hFE)	250
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1250 mW
	expand all
Size-Length	7.8 mm
Size-Width	2.7 mm
Size-Height	10.8 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BD140 is a PNP complementary epitaxial planar Low Voltage Transistor mounted in the plastic package. It is designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.
Pre-selected in DC current gain
