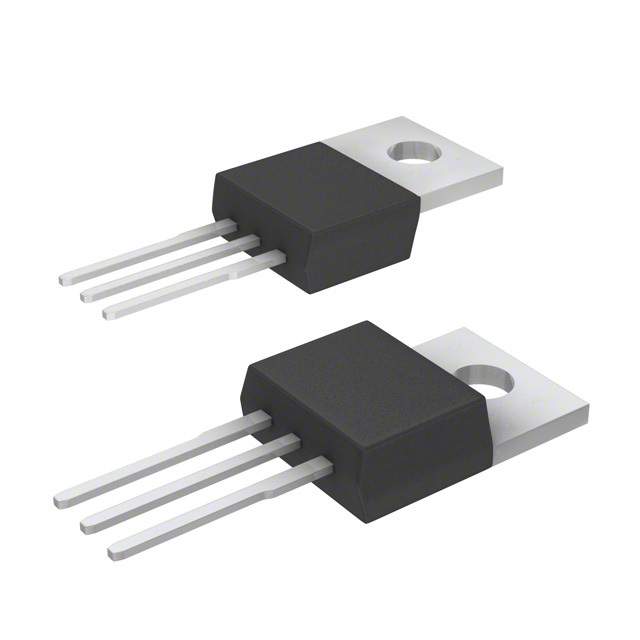

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BD810
Manufacturer

ON Semiconductor
ChipWorker Part#

CW184480000
Category

BJT Transistor, BJT
Description

TO-220-3 PNP 80V 10A
Documentation

Datasheet

BD810 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

BD810 Specifications

Attribute	Attribute Value

Part Number	BD810
Manufacturer	ON Semiconductor
ChipWorker Part#	CW184480000
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-80.0 V
Current Rating	-10.0 A
Polarity	PNP
Power Dissipation	90.0 W
Breakdown Voltage (Collector to Base)	80.0 V
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	10A
hFE Min	15 @4A, 2V
Input Power (Max)	90 W
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	50
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

Plastic High Power Silicon Transistor
These devices are designed for use in high power audio amplifiers utilizing complementary or quasi complementary circuits.
Features
• DC Current Gain - hFE = 30 (Min) @ IC = 2.0 Adc
• Pb-Free Packages are Available
