BFR93A - NXP

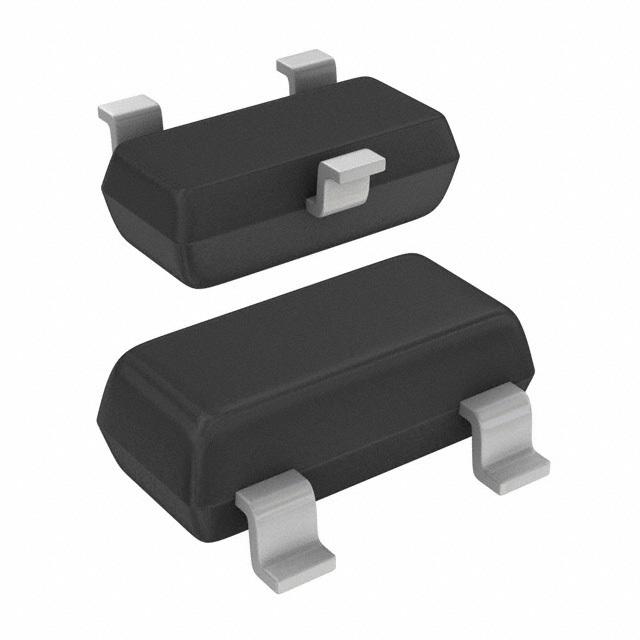

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BFR93A
Manufacturer

NXP
ChipWorker Part#

CW47774960
Category

BJT Transistor, BJT
Package

SOT-23-3
Description

Trans GP BJT NPN 12V 0.035A 3Pin TO-236AB
Documentation

Datasheet

BFR93A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BFR93A Specifications

Attribute	Attribute Value

Part Number	BFR93A
Manufacturer	NXP
ChipWorker Part#	CW47774960
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	300 mW
hFE Min	40
DC Current Gain (hFE)	90
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	300 mW
	expand all
Size-Length	3 mm
Size-Width	1.4 mm
Size-Height	1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BFR93A is a NPN 6GHz Wideband Transistor features high power gain, low noise figure and very low intermodulation distortion. Suitable for RF wideband amplifiers and oscillators.
Complement to BFT93
0.6pF Feedback capacitance

expand all
