BPW85 - VISHAY

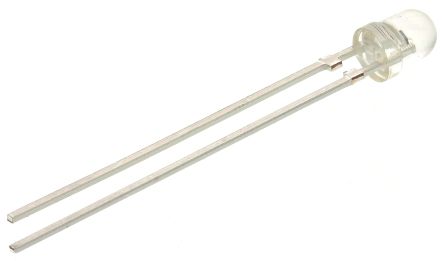

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BPW85
Manufacturer

VISHAY
ChipWorker Part#

CW15365526
Category

Phototransistor
Package

T-1
Description

Photodetector Transistors NPN Phototransistor 70V 0.1W(1/10W) 850nm
Documentation

Datasheet

BPW85 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BPW85 Specifications

Attribute	Attribute Value

Part Number	BPW85
Manufacturer	VISHAY
ChipWorker Part#	CW15365526
Category	Phototransistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	T-1
Power Rating	0.1 W
Number of Channels	1 Channel
Number of Positions	2 Position
Wavelength	850 nm
Viewing Angle	50°
Peak Wavelength	850 nm
Polarity	NPN
Power Dissipation	100 mW
Power Consumption	100 mW
Rise Time	2 µs
Breakdown Voltage (Collector to Emitter)	70 V
Input Power (Max)	150 mW
Fall Time	2.3 µs
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	expand all
Size-Height	4.5 mm
Material	Silicon
Operating Temperature	-40℃ ~ 100℃ (TA)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The BPW85 is a clear Silicon NPN Phototransistor with high radiant sensitivity. It is sensitive to visible and near infrared radiation and it has high photo and radiant sensitivity.
Fast response times
±25° Angle of half sensitivity
