BQ2002TSN - TI

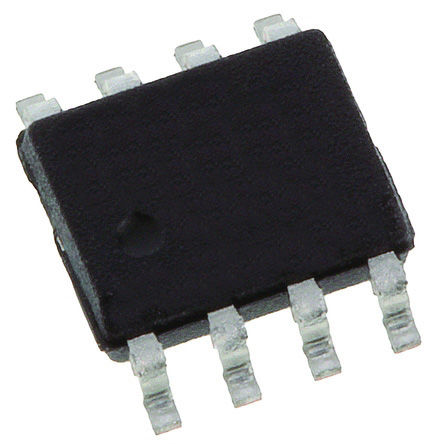

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BQ2002TSN
Manufacturer

TI
ChipWorker Part#

CW2489040
Category

Battery Management IC
Package

SOIC-8
Description

Battery Charger for 4 Cells of NiCd, NiMH battery, 6V input, 6V / 2A charge, SOIC-8
Documentation

Datasheet

BQ2002TSN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BQ2002TSN Specifications

Attribute	Attribute Value

Part Number	BQ2002TSN
Manufacturer	TI
ChipWorker Part#	CW2489040
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	6.00V (max)
Input Voltage (DC)	6.00 V
Output Current	2 A
Number of Positions	8 Position
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4 V
Supply Voltage (Max)	6 V
Input Voltage	6 V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The BQ2002TSN is a fast-charge Integrated Circuit features CMOS battery-charge controller able to provide reliable charge termination for both NiCd and NiMH battery applications. Controlling a current-limited or constant-current supply allows the IC to be the basis for a cost-effective stand-alone or system-integrated charger. The BQ2002T integrates fast charge with optional top-off and pulsed-trickle control in a single IC for charging one or more NiCd or NiMH battery cells. Fast charge is initiated on application of the charging supply or battery replacement. For safety, fast charge is inhibited if the battery temperature and voltage are outside configured limits. After fast charge, the IC optionally tops-off and pulse-trickles the battery per the pre-configured limits. Fast charge may be inhibited using the INH pin. The IC may be placed in low-standby-power mode to reduce system power consumption.
Fast charge of nickel cadmium or nickel-metal hydride batteries
Direct LED output displays charge status
Fast-charge termination by rate of rise of temperature, maximum voltage, temperature and time
Internal band-gap voltage reference
Optional top-off charge
Selectable pulse-trickle charge rates
Low-power mode
Green product and no Sb/Br
