BQ24745RHDR ,Battery Management IC - TI

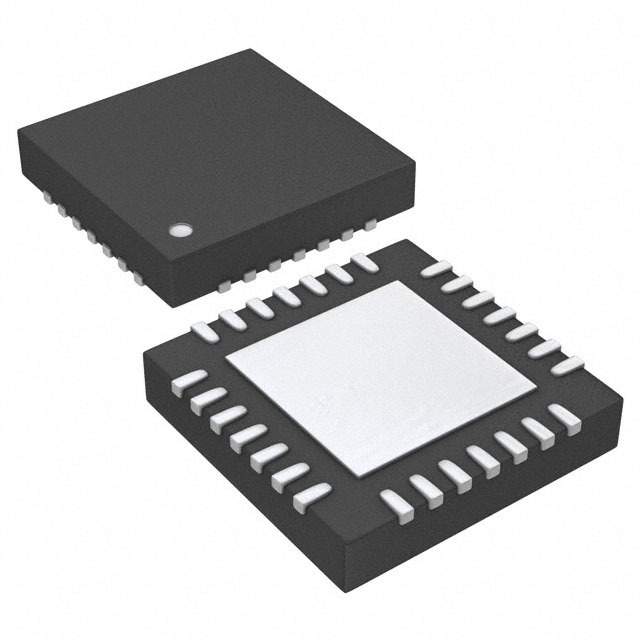

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

120 points

Part No

BQ24745RHDR
Manufacturer

TI
ChipWorker Part#

CW52132267
Category

Battery Management IC
Package

VQFN-28
Description

Battery Charge Management SMBus-Controlled Level 2 Multi-Chemistry Battery Charger With Input Current Detect Comparator Battery Charger Lead-Acid/Li-Ion/Li-Pol/NiCD/NiMH 128mA to 8064mA 1.024V to 19.2V 28Pin VQFN EP T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.45

Buy BQ24745RHDR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BQ24745RHDR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BQ24745RHDR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BQ24745RHDR
Manufacturer	TI
ChipWorker Part#	CW52132267
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	VQFN-28
Input Voltage (DC)	24.0 V
Output Voltage	1.024V ~ 19.2V
Switching Frequency	300 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	7 V
Supply Voltage (Max)	24 V
	expand all
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

DESCRIPTION
The bq24745 is a high-efficiency, synchronous
battery charger with an integrated input-current
comparator, offering low component count for
space-constrained, multi-chemistry battery-charging
applications. SMBus input-current, charge-current,
and charge-voltage DACs allow very high regulation
accuracies that can be easily programmed by the
system power-management microcontroller using the
SMBus. The bq24745 charges two, three, or four
series Li+ cells, and is available in a 28-pin, 5x5 mm2
thin QFN package.
FEATURES
• NMOS-NMOS Synchronous Buck Converter with 300 kHz Frequency and >95% Efficiency
• 30-ns Minimum Driver Dead-time and 99.5% Maximum Effective Duty Cycle
• High-Accuracy Voltage and Current Regulation
– ±0.5% Charge Voltage Accuracy
– ±3% Charge Current Accuracy
– ±3% Adapter Current Accuracy
– ±2% Input Current Sense Amp Accuracy
• Integration
– Input Current Comparator, With Adjustable Threshold and Hysteresis
– Internal Soft-Start
• Safety
– Input Overvoltage Protection (OVP)
– Dynamic Power Management (DPM)
• Up to 19.2 V Battery Voltage
• 6 V–24 V AC/DC-Adapter Operating Range
• Simplified SMBus Control
– Charge Voltage DAC (1.024 V–19.2 V)
– Charge Current DAC (128 mA–8.064 A)
– Adapter Current Limit DPM DAC (256mA–11.004 A)
• Status and Monitoring Outputs
– AC/DC Adapter Present with Adjustable Voltage Threshold
– Input Current Comparator, With Adjustable Threshold and Hysteresis
– Current Sense Amplifier for Current Drawn From Input Source
• Charge Any Battery Chemistry: Li+, NiCd,NiMH, Lead Acid, etc.
• Cells Pin Supports Two to Four Li-Ion Cells
• Charge Enable Pin
• < 10-µBattery Current with Adapter Removed
APPLICATIONS
• < 1 mA Input DCIN Current with Adapter Present and Charge Disabled
• 28-pin, 5x5-mm2 QFN Package
• Notebook and Ultra-Mobile Computers
• Portable Data-Capture Terminals
• Portable Printers
• Medical Diagnostics Equipment
• Battery Bay Chargers
• Battery Back-up Systems
