BSC042NE7NS3G - Infineon

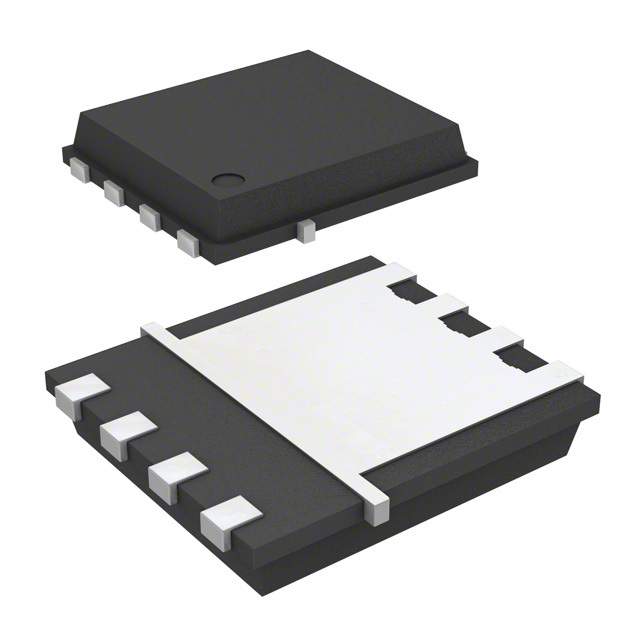

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSC042NE7NS3G
Manufacturer

Infineon
ChipWorker Part#

CW26529444
Category

MOSFET, MOSFET Transistor
Package

100
Description

Trans MOSFET N-CH 75V 19A Automotive 8Pin TDSON EP T/R
Documentation

Datasheet

BSC042NE7NS3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSC042NE7NS3G Specifications

Attribute	Attribute Value

Part Number	BSC042NE7NS3G
Manufacturer	Infineon
ChipWorker Part#	CW26529444
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	100
Polarity	N-Channel
Power Dissipation	2.5 W
Input Capacitance (Ciss)	3600pF @37.5V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125 W
	expand all
Size-Length	6.1 mm
Size-Width	5.35 mm
Size-Height	1.1 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

N-Channel 75 V 19A (Ta), 132A (Tc) 2.5W (Ta), 125W (Tc) Surface Mount PG-TDSON-8-1
