BSC060P03NS3E G - Infineon

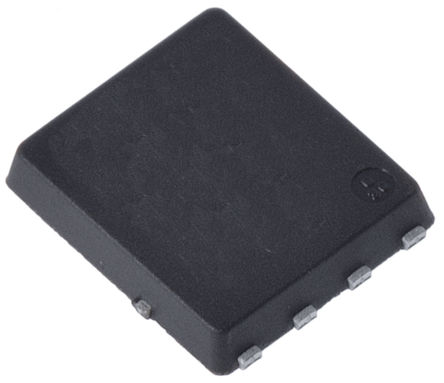

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSC060P03NS3E G
Manufacturer

Infineon
ChipWorker Part#

CW35671610
Category

MOSFET, MOSFET Transistor
Package

PG-TDSON-8
Description

Trans MOSFET P-CH 30V 17.7A 8Pin TDSON EP
Documentation

Datasheet

BSC060P03NS3E G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSC060P03NS3E G Specifications

Attribute	Attribute Value

Part Number	BSC060P03NS3E G
Manufacturer	Infineon
ChipWorker Part#	CW35671610
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-TDSON-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0041 Ω
Polarity	P-Channel
Power Dissipation	83 W
Drain to Source Voltage (Vds)	30 V
Rise Time	139 nS
Input Capacitance (Ciss)	6020pF @15V(Vds)
Input Power (Max)	2.5 W
Fall Time	34 nS
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 83W (Tc)
	expand all
Size-Length	6.1 mm
Size-Width	5.35 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Summary of Features:
Enhancement mode
Normal level, logic level or super logic level
Avalanche rated
Pb-free lead plating; RoHS compliant
