BTS4300SGAXUMA1 - Infineon

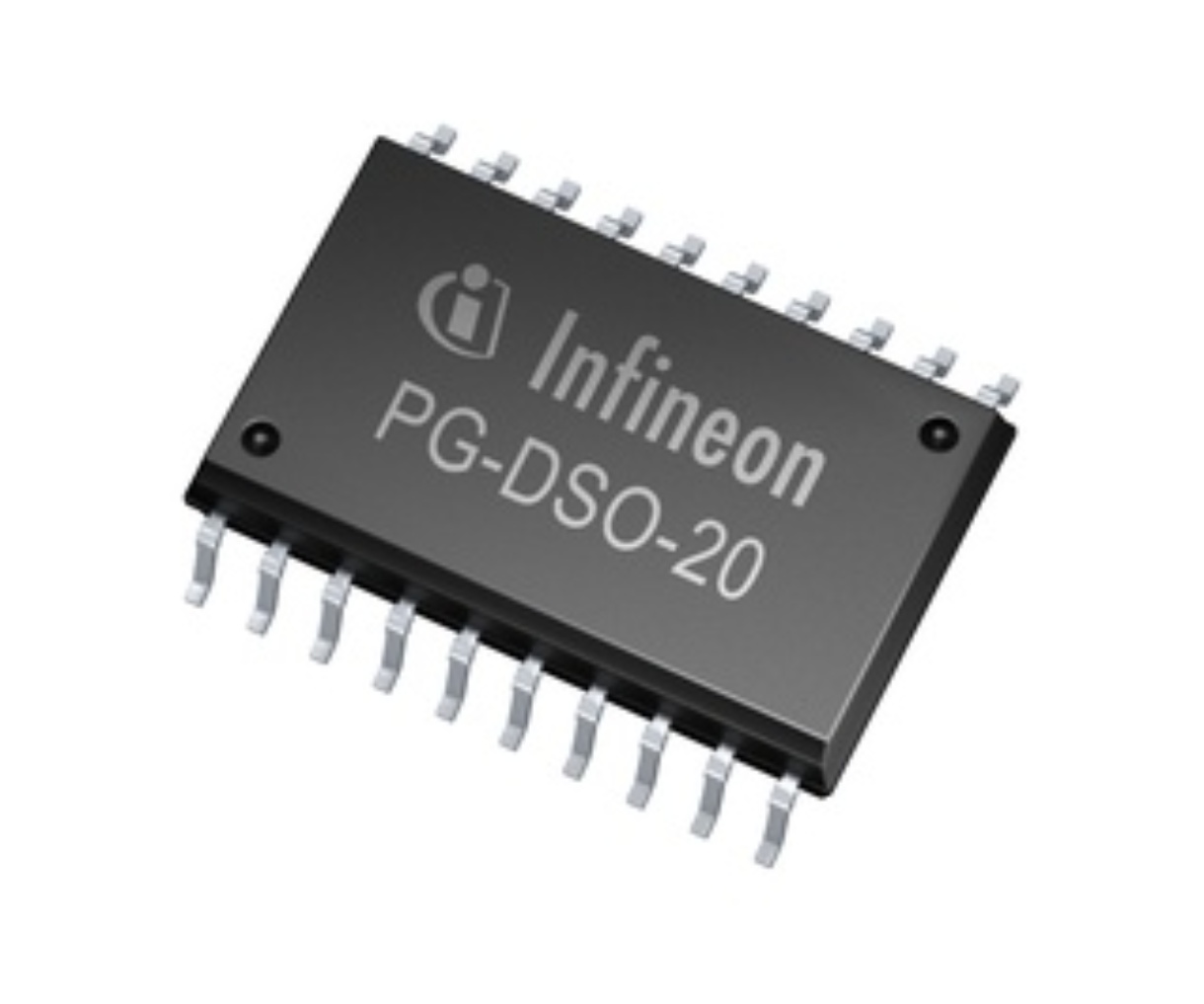

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BTS4300SGAXUMA1
Manufacturer

Infineon
ChipWorker Part#

CW28405653
Category

Power Distribution
Package

PG-DSO-8
Description

Power Switch Hi Side 1Out 0.4A 0.3Ω Automotive 8Pin DSO T/R
Documentation

Datasheet

BTS4300SGAXUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BTS4300SGAXUMA1 Specifications

Attribute	Attribute Value

Part Number	BTS4300SGAXUMA1
Manufacturer	Infineon
ChipWorker Part#	CW28405653
Category	Power Distribution
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8
Number of Outputs	1 Output
Output Current	0.4 A
Supply Current	1.3 mA
Number of Positions	8 Position
Power Dissipation	0.8 W
Output Current (Min)	0.4 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	800 mW
Input Voltage	34 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The BTS4300SGA is a single channel smart high-side Power Switch providing protective functions and diagnostics. The power transistor is built by an N-channel power MOSFET with charge pump. The device is monolithically integrated in smart technology. It is specially designed to drive relay or LED in the harsh automotive environment.
Fits for 12V application
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown with restart
Overvoltage protection (including load dump)
Fast demagnetizing of inductive loads
Reverse battery protection with external resistor
Open drain diagnostic output
Open load detection in OFF-state
CMOS compatible input
Loss GND and loss Vbb protection
Very low stand by current
Green product
AEC qualified
Negative voltage clamped at output with inductive loads
Flags a fail event (Status pin)
