C315C331J2G5TA - KEMET Corporation

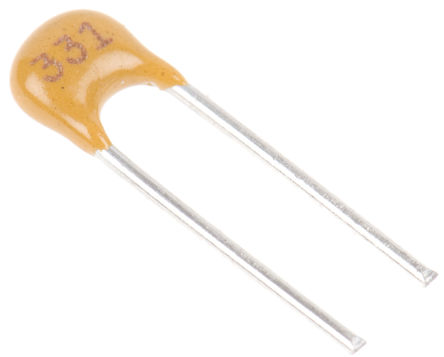

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

C315C331J2G5TA
Manufacturer

KEMET Corporation
ChipWorker Part#

CW16214663
Category

Ceramic Capacitor
Package

Radial
Description

330pF ±5% 200V NPO
Documentation

Datasheet

C315C331J2G5TA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

C315C331J2G5TA Specifications

Attribute	Attribute Value

Part Number	C315C331J2G5TA
Manufacturer	KEMET Corporation
ChipWorker Part#	CW16214663
Category	Ceramic Capacitor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Pin Pitch	2.54 mm
Voltage Rating (DC)	200 V
Capacitance	330 pF
Capacitance Tolerance	±5 %
Dielectric Characteristic	C0G/NP0
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	200 V
	expand all
Size-Length	3.81 mm
Size-Width	3.81 mm
Size-Height	5.33 mm
Lead Length	7.00 mm
Material	NP0/-55℃~+125℃
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±30 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

* **Working Voltage:**
C0G - 50, 100, 200, 500, 1k, 1.5k, 2k, 2.5k, 3k
X7R - 50,100, 200, 500,1k, 1.5k, 2k, 2.5k, 3k
Z5U - 50, 100
* **Dielectric:**
C0G - 0± 30PPM / -55 C to + 125 C
X7R - ± 15% from -55 C to + 125 C
Z5U - ± 22% / - 56% from + 10 C to + 85 C
* ** Tolerance: **
C0G - ±0.5pF, ±1%,±2%, ±5%,±10%
X7R - ±10%, ± 20%, +80% / -20%, +100% / -0%
Z5U - ±20%, +80% / -20%
* **Lead Spacing:** .100LS, .200LS & .400LS
Multilayer ceramic capacitors are available in a variety of physical sizes and configurations, including leaded devices and surface mounted chips. Leaded styles include molded and conformally coated parts with axial and radial leads. Ceramic dielectric materials can be formulated with a wide range of characteristics. The EIA standard for ceramic dielectric capacitors (RS-198) divides ceramic dielectrics into the following classes: Class I, Class II and Class III.* Class I:** Temperature compensating capacitors, suitable for resonant circuit application or other applications where high Q and stability of capacitance characteristics are required. **Class II:** Stable capacitors, suitable for bypass or coupling applications or frequency discriminating circuits where Q and stability of capacitance characteristics are not of major importance.** Class III:** General purpose capacitors, suitable for by-pass coupling or other appllications in which dielectic losses, high insulation resistance and stability of capacitance characteristics are of little or no importance.
