CBL2012T100M - Taiyo Yuden

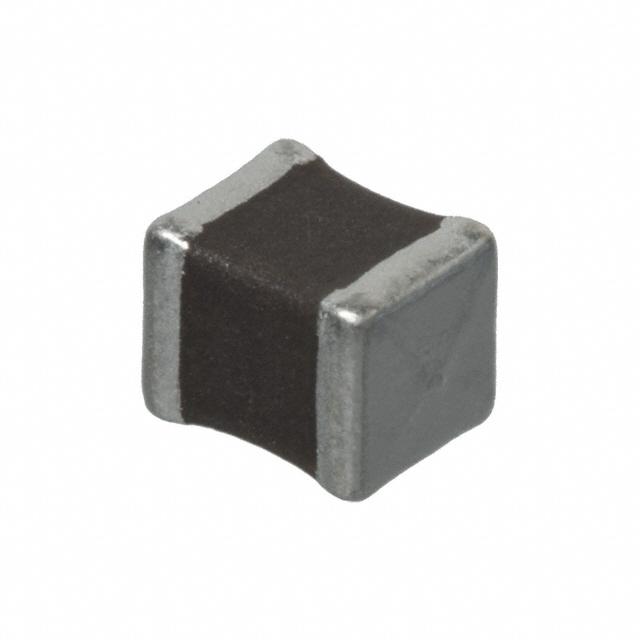

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CBL2012T100M
Manufacturer

Taiyo Yuden
ChipWorker Part#

CW5980969
Category

Inductor
Package

0805
Description

0805 10uH ±20%
Documentation

Datasheet

CBL2012T100M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CBL2012T100M Specifications

Attribute	Attribute Value

Part Number	CBL2012T100M
Manufacturer	Taiyo Yuden
ChipWorker Part#	CW5980969
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Current Rating	370 mA
Capacitance Tolerance	±20 %
Halogen Free Status	Halogen Free
Inductance	10 µH
Self Resonant Frequency	32 MHz
Part Family	CB
Shielding	No
Inductance Tolerance	±20 %
Test Frequency	0.1 MHz
DC Resistance (DCR)	≤1.3 Ω
Current Rating (DC)	370 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	1 Ω
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

10µH Unshielded Wirewound Inductor 370mA 1.3Ohm Max 0805 (2012 Metric)
