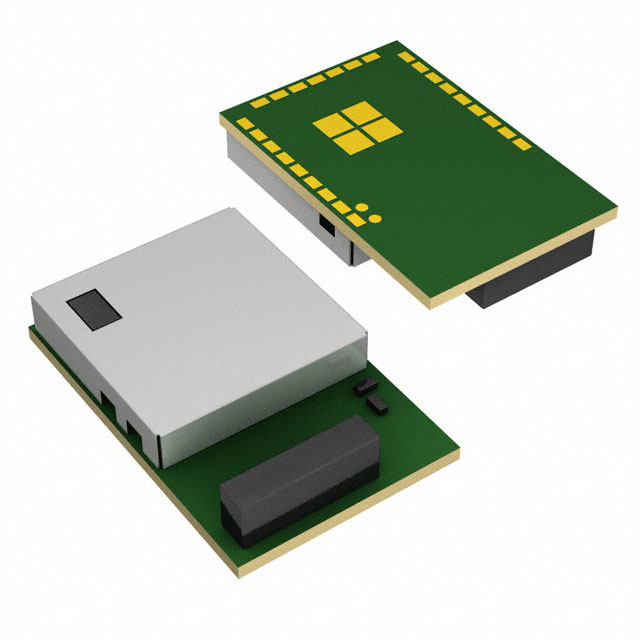

CC2650MODAMOHR - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CC2650MODAMOHR
Manufacturer

TI
ChipWorker Part#

CW42524424
Category

RF Receiver
Package

SMD-29
Description

MCU 32Bit CC26xx ARM Cortex M3 RISC 3.3V 29Pin QFM T/R
Documentation

Datasheet

CC2650MODAMOHR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CC2650MODAMOHR Specifications

Attribute	Attribute Value

Part Number	CC2650MODAMOHR
Manufacturer	TI
ChipWorker Part#	CW42524424
Category	RF Receiver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	29 Pin
Case/Package	SMD-29
Frequency	2.4 GHz
RAM Memory Size	2 KB
FLASH Memory Size	131072 B
Output Power	5 dBm
Number of UARTs	1 UART
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.8V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The SimpleLink™ CC2650MODA device is a wireless microcontroller (MCU) module that targets _Bluetooth_® low energy applications. The CC2650MODA device can also run ZigBee® and 6LoWPAN and ZigBee RF4CE™ remote control applications.
The module is based on the SimpleLink CC2650 wireless MCU, a member of the CC26xx family of cost-effective, ultra-low-power, 2.4-GHz RF devices. Very-low active RF and MCU current and low-power mode current consumption provide excellent battery lifetime and allow for operation on small coin-cell batteries and in energy-harvesting applications.
The CC2650MODA module contains a 32-bit ARM Cortex-M3 processor that runs at 48 MHz as the main processor and a rich peripheral feature set that includes a unique ultra-low-power sensor controller. This sensor controller is good for interfacing with external sensors or for collecting analog and digital data autonomously while the rest of the system is in sleep mode. Thus, the CC2650MODA device is good for applications within a wide range of products including industrial, consumer electronics, and medical devices.
The CC2650MODA module is pre-certified for operation under the regulations of the FCC, IC, ETSI, and ARIB. These certifications save significant cost and effort for customers when integrating the module into their products.
The Bluetooth low energy controller and the IEEE 802.15.4 MAC are embedded in the ROM and are partly running on a separate ARM® Cortex®-M0 processor. This architecture improves overall system performance and power consumption and makes more flash memory available.
The Bluetooth low energy software stack (BLE-Stack) and the ZigBee software stack (Z-Stack™) are available free of charge.
