CD4093BF - TI

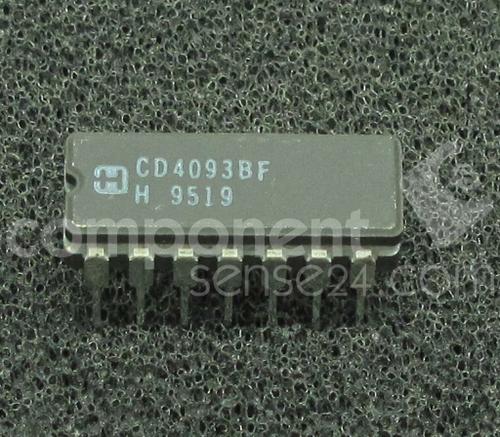

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CD4093BF
Manufacturer

TI
ChipWorker Part#

CW31302857
Category

Logic Control, Logic Gate IC
Package

CDIP
Description

NAND Gate 4Element 2IN CMOS 14Pin CDIP Tube
Documentation

Datasheet

CD4093BF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CD4093BF Specifications

Attribute	Attribute Value

Part Number	CD4093BF
Manufacturer	TI
ChipWorker Part#	CW31302857
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP
Supply Voltage (DC)	3.00V ~ 18.0V
Number of Outputs	1 Output
Number of Bits	4 Bit
Propagation Delay Max (tpd)	380 ns
Voltage Nodes	5.00 V, 10.0 V, 15.0 V
Number of Gates	4 Gate
Output Current Drive	-1.00 mA
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	19.94 mm
Size-Width	7.62 mm
Size-Height	3.56 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

CD4093BF logic gates, developed by Texas Instruments, are a great way to implement fundamental logical decisions. This gate has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
