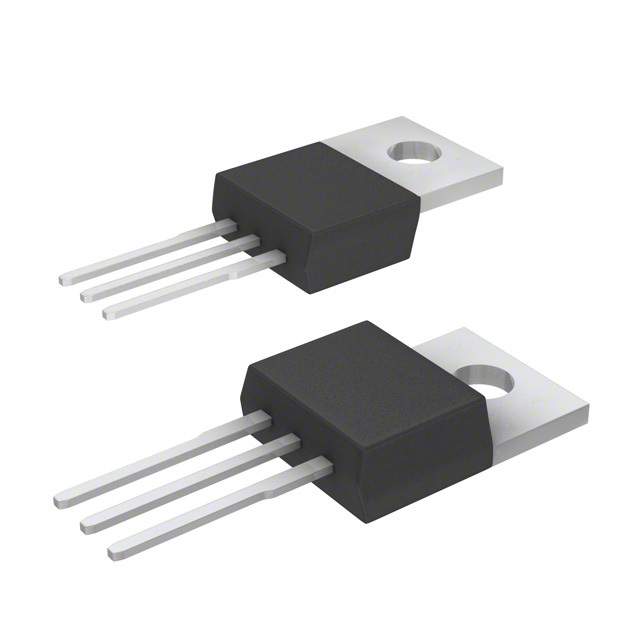

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

D45VH10
Manufacturer

ON Semiconductor
ChipWorker Part#

CW143242645
Category

BJT Transistor, BJT
Package

TO-220-3
Description

TO-220AB PNP 80V 15A
Documentation

Datasheet

D45VH10 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

D45VH10 Specifications

Attribute	Attribute Value

Part Number	D45VH10
Manufacturer	ON Semiconductor
ChipWorker Part#	CW143242645
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-80.0 V
Current Rating	-15.0 A
Polarity	Dual P-Channel
Power Dissipation	83.0 W
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	15A
hFE Min	20 @4A, 1V
Input Power (Max)	83 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Height	9.28 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Rail
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

Complementary Silicon Power Transistors
These complementary silicon power transistors are designed for high-speed switching applications, such as switching regulators and high frequency inverters. The devices are also well-suited for drivers for high power switching circuits.
Features
•Fast Switching - tf= 90 ns (Max)
•Key Parameters Specified @ 100°C
•Low Collector-Emitter Saturation Voltage - VCE(sat)= 1.0 V (Max) @ 8.0 A
•Complementary Pairs Simplify Circuit Designs
•Pb-Free Packages are Available
