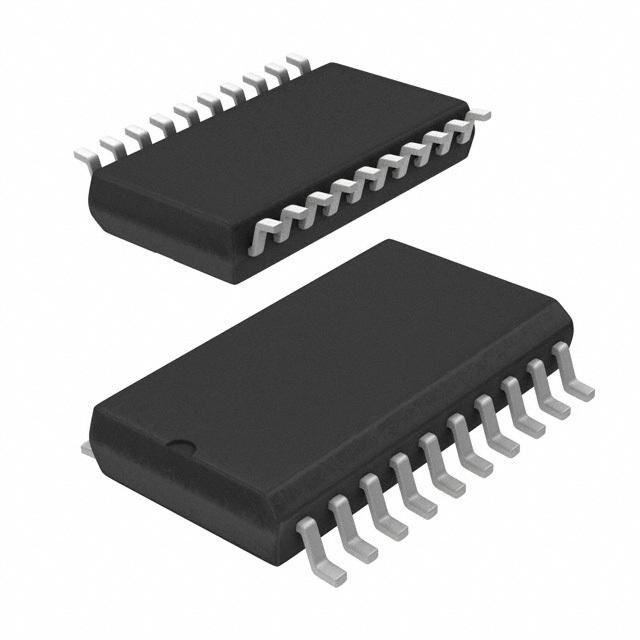

DAC312FR ,Digital to Analog, DAC IC - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

173 points

Part No

DAC312FR
Manufacturer

ADI
ChipWorker Part#

CW830246
Category

Digital to Analog, DAC IC
Package

CDIP-20
Description

ANALOG DEVICES DAC312FR Digital to Analog Converter, 12Bit, Parallel, 4.5V to 18V, -10.8V to -18V, DIP, 20Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

79094 pcs In Stock
Estimated Price

$ 1.61

Buy DAC312FR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

DAC312FR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

DAC312FR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	DAC312FR
Manufacturer	ADI
ChipWorker Part#	CW830246
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	CDIP-20
Number of Outputs	1 Output
Number of Channels	1 Channel
Number of Bits	12 Bit
Power Dissipation	0.375 W
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	375 mW
Number of DACs	1 DAC
	expand all
Size-Height	3.56 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Product Details
The DAC312 series of 12-bit multiplying digital-to-analog converters provide high speed with guaranteed performance to 0.012% differential nonlinearity over the full commercial operating temperature range.

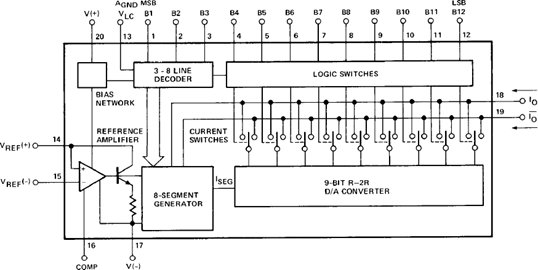

The DAC312 combines a 9-bit master D/A converter with a 3-bit (MSBs) segment generator to form an accurate 12-bit D/A converter at low cost. This technique guarantees a very uniform step size (up to ±1/2 LSB from the ideal), monotonicity to 12-bits and integral nonlinearity to 0.05% at its differential current outputs. In order to provide the same performance with a 12-bit R-2R ladder design, an integral nonlinearity over temperature of 1/2 LSB (0.012%) would be required.
The 250 ns settling time with low glitch energy and low power consumption are achieved by careful attention to the circuit design and stringent process controls. Direct interface with all popular logic families is achieved through the logic threshold terminal.
High compliance and low drift characteristics (as low as 10 ppm/°C) are also features of the DAC312 along with an excellent power supply rejection ratio of ±.001% FS/%(Delta)V. Operating over a power supply range of +5/-11 V to ±18 V the device consumes 225 mW at the lower supply voltages with an absolute maximum dissipation of 375 mW at the higher supply levels.
With their guaranteed specifications, single chip reliability and low cost, the DAC312 device makes excellent building blocks for A/D converters, data acquisition systems, video display drivers, programmable test equipment and other applications where low power consumption and complete input/output versatility are required.
### Features and Benefits
Differential Nonlinearity: ±1/2 LSB
Nonlinearity: 0.05%
Fast Settling Time: 250 ns
High Compliance: -5 V to +10 V
Differential Outputs: 0 to 4 mA
Guaranteed Monotonicity: 12 bits
Low Full-Scale Tempco: 10 ppm/°C
Circuit Interface to TTL, CMOS, ECL, PMOS/NMOS
Low Power Consumption: 225 mW
Industry Standard AM6012 Pinout
Available in Die Form

expand all
