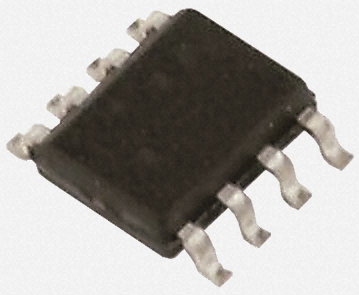

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DALC112S1
Manufacturer

ST Microelectronics
ChipWorker Part#

CW32489763
Category

TVS Diode
Package

SOIC-8
Description

STMICROELECTRONICS DALC112S1 ESD Protection Device, TVS, SOIC, 8Pins, 1.3V
Documentation

Datasheet

DALC112S1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DALC112S1 Specifications

Attribute	Attribute Value

Part Number	DALC112S1
Manufacturer	ST Microelectronics
ChipWorker Part#	CW32489763
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	18.0 V
Operating Voltage	1.3 V
Capacitance	7 pF
Breakdown Voltage	18 V
Number of Circuits	6 Circuit
Number of Positions	8 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The DALC112S1 is a low capacitance Diode Array for ESD protection. It is an array of 12 diodes configured by cells of 2 diodes, each cell being used to protect signal line from transient over-voltages by clamping action. It"s very low capacitance allows to protect fast signals with no distortion. It is particularly suited for the protection of graphic video ports.
Array of 12 diodes for ESD protection
18V Peak reverse voltage (VRRM) per diode
<5pF Very low capacitance per diode
<2µA Very low leakage current (IR)
