FSA2269UMX - Fairchild

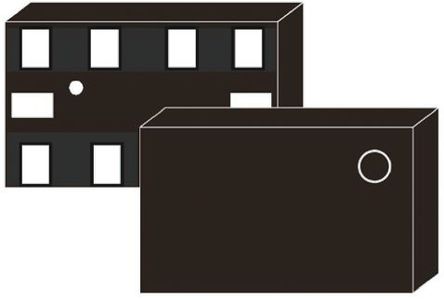

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSA2269UMX
Manufacturer

Fairchild
ChipWorker Part#

CW101294870
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

UMLP-10
Description

FAIRCHILD SEMICONDUCTOR FSA2269UMX Analog Switch, Dual Channel, SPDT, 2Channels, 0.4Ω, 1.65V to 4.3V, UMLP, 10Pins
Documentation

Datasheet

FSA2269UMX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSA2269UMX Specifications

Attribute	Attribute Value

Part Number	FSA2269UMX
Manufacturer	Fairchild
ChipWorker Part#	CW101294870
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UMLP-10
Number of Outputs	4 Output
Number of Channels	2 Channel
Bandwidth	50.0 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	50 MHz
Supply Voltage	1.65V ~ 4.3V
	expand all
Size-Length	1.8 mm
Size-Width	1.4 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
