DPG60C300HB - IXYS Semiconductor

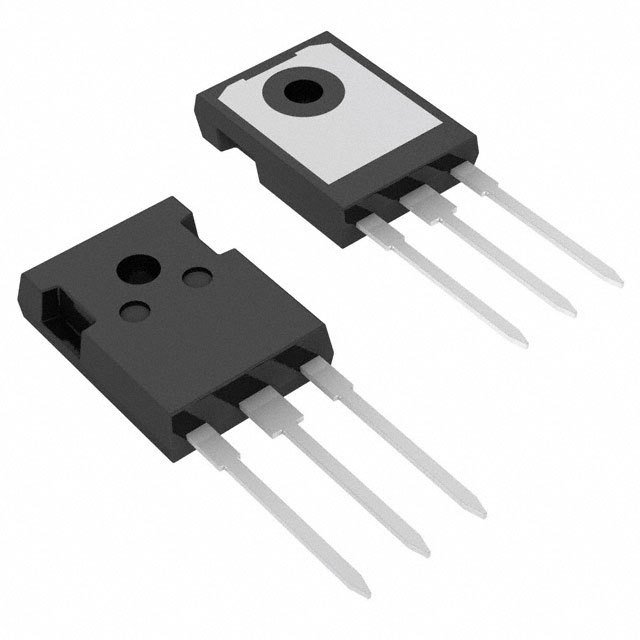

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DPG60C300HB
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW9640529
Category

Diode Array, TVS Diode Array
Package

TO-3-3
Description

Diode Switching 300V 60A 3Pin(3+Tab) TO-247 Tube
Documentation

Datasheet

DPG60C300HB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DPG60C300HB Specifications

Attribute	Attribute Value

Part Number	DPG60C300HB
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW9640529
Category	Diode Array, TVS Diode Array
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Forward Voltage	1.34V @30A
Power Dissipation	160 W
Reverse recovery time	35 ns
Forward Current	30 A
Maximum Forward Voltage (Max)	1.34V @30A
Forward Current (Max)	60000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	160000 mW
	expand all
Size-Length	16.24 mm
Size-Width	5.3 mm
Size-Height	21.45 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

Diode Array 1 Pair Common Cathode Standard 300V 30A Through Hole TO-3P-3 Full Pack
