DS1721 - Maxim Integrated

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DS1721
Manufacturer

Maxim Integrated
ChipWorker Part#

CW1207898065
RoHS

Lead free / RoHS Compliant
Description

Digital Thermometer and Thermostat
Documentation

Datasheet

DS1721 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DS1721 Specifications

Attribute	Attribute Value

Part Number	DS1721
Manufacturer	Maxim Integrated
ChipWorker Part#	CW1207898065
Documentation	Datasheet
Case/Package	µMAX-8
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant

Product Description

Description

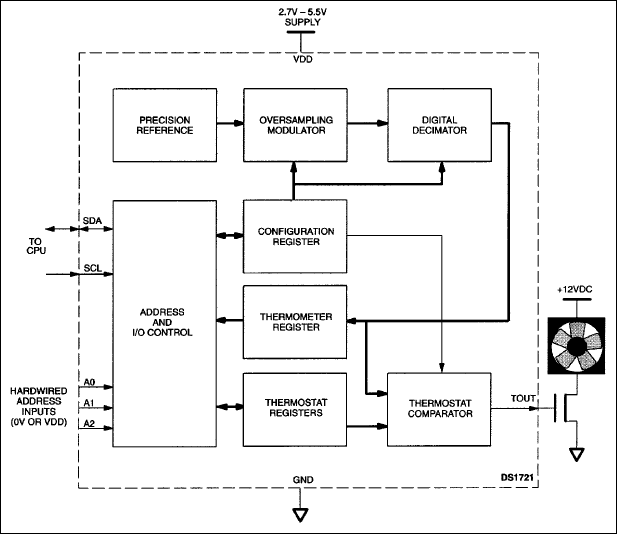

The DS1721 digital thermometer and thermostat features ±1°C accuracy over a -10°C to +85°C range. Thermometer data is read out over a 2-wire serial bus in 2"s complement format with 9 to 12 bits of resolution (user-programmable). The DS1721 features three address inputs, allowing users to multidrop up to eight DS1721 devices on one bus.
The DS1721 offers thermostatic functionality with over-temperature (TH) and under-temperature (TL) user-programmable trip-points stored in on-chip SRAM. The two trip-points provide programmable thermostat hysteresis: the thermostat output is asserted when the measured temperature exceeds TH and it remains active until the temperature falls below TL.
The DS1721 is available in 150mil 8-pin SO (DS1721S) and 8-pin µMAX/µSOP (DS1721U) packages. For applications requiring higher precision, the DS1631 provides ±0.5°C accuracy and is functionally compatible with the DS1721.
