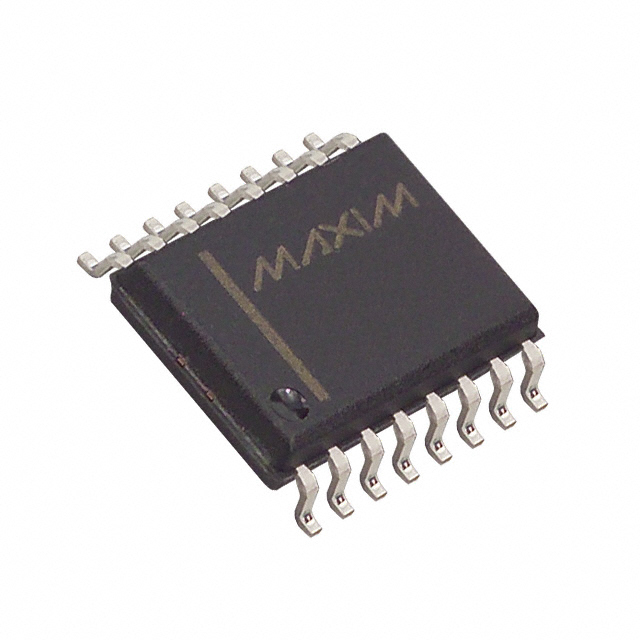

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

99 points

Part No

DS2401Z+T&R
Manufacturer

Maxim Integrated
ChipWorker Part#

CW1173126
Category

Active Chip
Package

SOT-223-3
Description

Special Function IC, Silicon Serial Number, 2.8V to 6V, SOT-223-4
Documentation

Datasheet
Ships from

Moscow
Наличие

4020 pcs In Stock
Estimated Price

$ 0.9

Buy DS2401Z+T&R

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

DS2401Z+T&R Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

DS2401Z+T&R Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	DS2401Z+T&R
Manufacturer	Maxim Integrated
ChipWorker Part#	CW1173126
Category	Active Chip
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-3
Supply Voltage (DC)	2.80V (min)
Operating Voltage	2.8V ~ 6V
Number of Positions	4 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.8 V
	expand all
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The DS2401Z+T&R is a silicon serial number IC in 4 pin SOT-223 package. It is a low cost device which generates electronic registration number that provides an absolutely unique identity which can be determined with minimal electronic interface (typically a single port pin of a microcontroller). The DS2401 consists of factory lasered 64bit ROM that includes a unique 48bit serial number, 8bit CRC and 8bit family code (01h). Data is transferred serially via the 1-wire protocol that requires only a single data lead and ground return. Power for reading and writing the device is derived from data line itself with no need for an external power source. The DS2401 is an upgrade and reverse compatible to DS2400 device. The familiar SOT-223 package provides a compact enclosure that allows standard assembly equipment to handle the device easily. The DS2401 is suitable for network node ID, equipment registration, PCB ID and authentication and print cartridge authentication.
Pull-up voltage range is 2.8V to 6V
Operating temperature range from -40°C to 85°C
Unique 64bit ROM ID chip for absolute traceability and zero standby power required
8bit family code specifies DS2401 communication requirements to reader
Minimalist 1-wire interface lowers cost and interface complexity
Multiple DS2401 devices can reside on common 1-wire net, 15µs release time and 1µs recovery time
Built-in multidrop controller ensures compatibility with other 1-wire net products
Reduces control, address, data and power to a single pin and communicates at up to 16.3Kbps
Presence pulse acknowledges when the reader first applies voltage
Wide voltage and temperature operating ranges enables robust system performance

expand all
