DZ2J130M0L - Panasonic

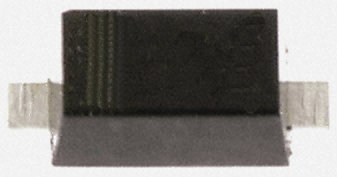

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DZ2J130M0L
Manufacturer

Panasonic
ChipWorker Part#

CW15802326
Category

Zener Diode, Zener
Package

SMini2-F5-B
Description

SMini2-F5-B 13.07V 200mW
Documentation

Datasheet

DZ2J130M0L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DZ2J130M0L Specifications

Attribute	Attribute Value

Part Number	DZ2J130M0L
Manufacturer	Panasonic
ChipWorker Part#	CW15802326
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMini2-F5-B
Capacitance Tolerance	±2.5 %
Number of Positions	2 Position
Forward Voltage	1V @10mA
Power Dissipation	200 mW
Test Current	5 mA
Zener Voltage	13 V
Maximum Forward Voltage (Max)	1V @10mA
Input Power (Max)	200 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	200 mW
	expand all
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	0.7 mm
Temperature Coefficient	10.9 mV/℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Zener Diode 13V 200mW ±2.5% Surface Mount SMini2-F5-B
