EC12E24204A8 - ALPS Electric

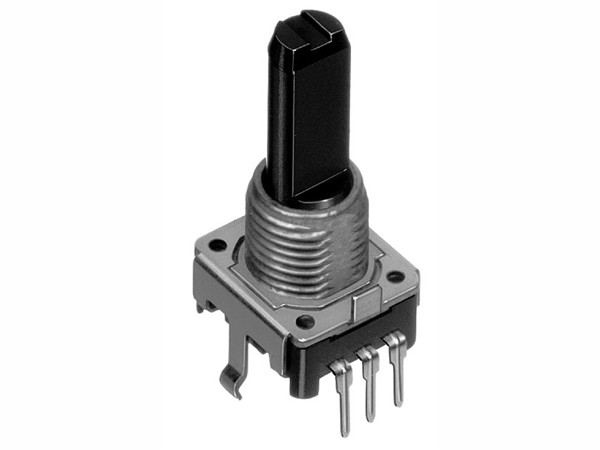

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EC12E24204A8
Manufacturer

ALPS Electric
ChipWorker Part#

CW9640326
Category

Encoder
RoHS

Lead free / RoHS Compliant
Description

Mechanical Encoder Rotary Incremental Flat 20mN.m Straight Quadrature Digital Square Wave 24PPR Through Hole PC Pin
Documentation

Datasheet

EC12E24204A8 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EC12E24204A8 Specifications

Attribute	Attribute Value

Part Number	EC12E24204A8
Manufacturer	ALPS Electric
ChipWorker Part#	CW9640326
Category	Encoder
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Through Hole
Supply Voltage (DC)	5.00V (max)
Operating Voltage	5 VDC
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Detents	24 Detent
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-10 ℃
Supply Voltage	5 VDC
Supply Voltage (Max)	5 VDC
	expand all
Size-Length	14 mm
Size-Height	20 mm
Operating Temperature	-10℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8543709650

Product Description

The EC12E24204A8 is a 12mm size insulated shaft type Vertical Encoder with insertion terminals. The single-shaft encoder features incremental (two phase A and B) output signal, 24 pulse and 24 number of detents. The vertical encoder is suitable for wide variety of applications.
