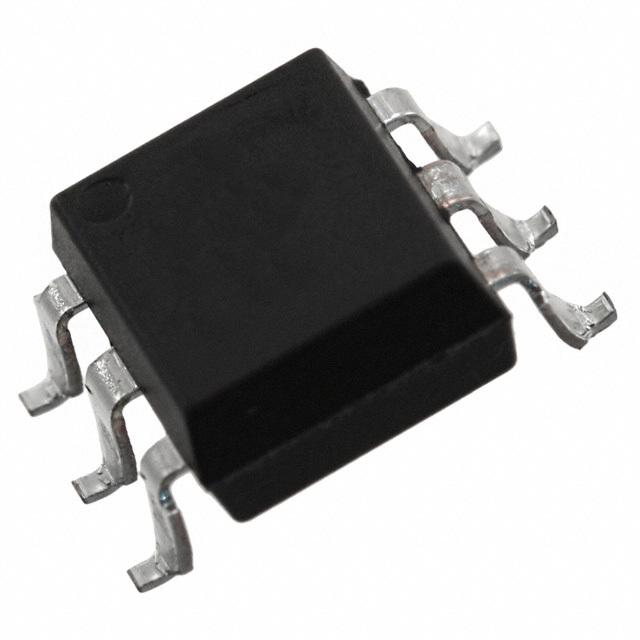

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EL3021
Manufacturer

Everlight Electronics
ChipWorker Part#

CW1607132
Category

Optocoupler, Optoisolator
Package

DIP-6
Description

Optocoupler Triac AC-OUT 1CH 400V 6Pin PDIP Tube
Documentation

Datasheet

EL3021 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EL3021 Specifications

Attribute	Attribute Value

Part Number	EL3021
Manufacturer	Everlight Electronics
ChipWorker Part#	CW1607132
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Number of Channels	1 Channel
Forward Voltage	1.18 V
Power Dissipation	330 mW
Isolation Voltage	5000 Vrms
Holding Current	250 µA
Forward Current	60 mA
Input Voltage (Max)	1.5 V
Output Voltage (Max)	280 VAC
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	60 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	330 mW
Input Voltage	1.18 V
	expand all
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Description
The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo Triac. They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 to 240 VAC operations.
.
Features:
• Peak breakdown voltage
\- 250V: EL301X
\- 400V: EL302X
\- 600V: EL305X
• High isolation voltage between input
and output (Viso=5000 V rms )
• Compact dual-in-line package
• Pb free and RoHS compliant.
• UL approved (No. E214129)
• VDE approval (pending)
• SEMKO approval (pending)
• NEMKO approval (pending)
• DEMKO approval (pending)
•FIMKO approval (pending)
• CSA approval (pending)
