FDMC86244 - Fairchild

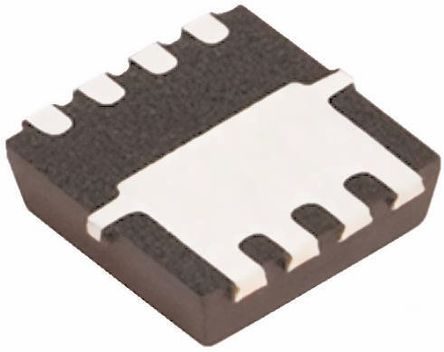

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDMC86244
Manufacturer

Fairchild
ChipWorker Part#

CW88484040
Category

MOSFET, MOSFET Transistor
Package

Power-33-8
Description

Trans MOSFET N-CH 150V 2.8A 8Pin MLP EP T/R
Documentation

Datasheet

FDMC86244 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDMC86244 Specifications

Attribute	Attribute Value

Part Number	FDMC86244
Manufacturer	Fairchild
ChipWorker Part#	CW88484040
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Power-33-8
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	0.105 Ω
Polarity	N-Channel
Power Dissipation	26 W
Threshold Voltage	2.6 V
Drain to Source Voltage (Vds)	150 V
Continuous Drain Current (Ids)	2.8A
Rise Time	1.5 ns
Input Capacitance (Ciss)	345pF @75V(Vds)
Input Power (Max)	2.3 W
Fall Time	2.3 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.3W (Ta), 26W (Tc)
	expand all
Size-Length	3.3 mm
Size-Width	3.3 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
