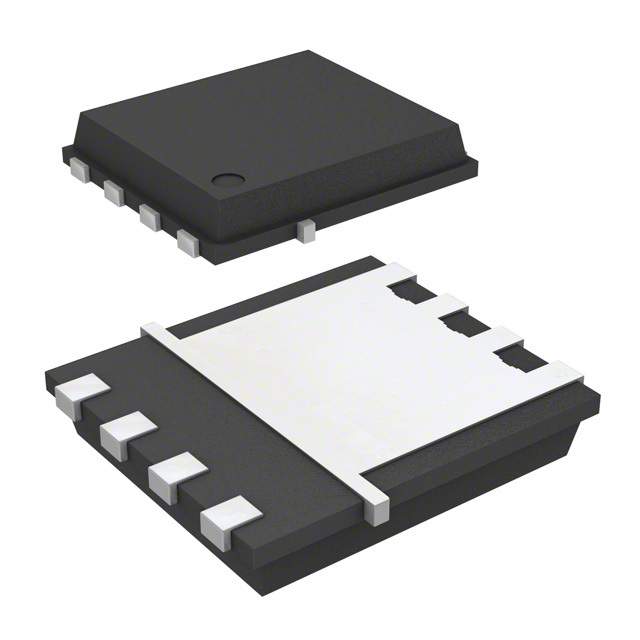

FDMS86200 - Fairchild

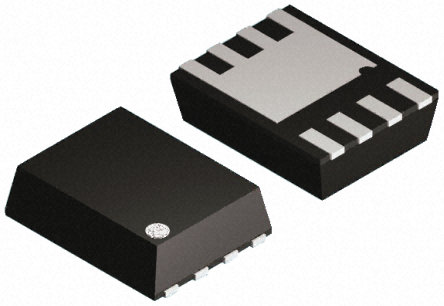

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoFDMS86200
-
ManufacturerFairchild
-
ChipWorker Part#CW7105342
-
CategoryMOSFET, MOSFET Transistor
-
PackageDualCool-56-8
-
DescriptionPower Field-Effect Transistor, 9.6A I(D), 150V, 0.018Ω, 1Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, MO-240AA, ROHS COMPLIANT, POWER 56, 8Pin
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
FDMS86200 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
FDMS86200 Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | FDMS86200 |
| Manufacturer | Fairchild |
| ChipWorker Part# | CW7105342 |
| Category | MOSFET, MOSFET Transistor |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | DualCool-56-8 |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.015 Ω |
| Polarity | N-Channel |
| Power Dissipation | 104 W |
| Threshold Voltage | 2.5 V |
| Drain to Source Voltage (Vds) | 150 V |
| Continuous Drain Current (Ids) | 9.6A |
| Rise Time | 7.9 ns |
| Input Capacitance (Ciss) | 2715pF @75V(Vds) |
| Input Power (Max) | 2.5 W |
| Fall Time | 5.8 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2.5W (Ta), 104W (Tc) |
| expand all | |
| Size-Length | 5 mm |
| Size-Width | 6 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
Product Description
- The FDMS86200 is a N-channel MOSFET is produced using Fairchild Semiconductor"s advanced PowerTrench® process. It has been especially tailored to minimize the ON-state resistance and yet maintain superior switching performance.
- Shielded gate MOSFET technology
- Advanced package and silicon combination for low RDS (ON) and high efficiency
- MSL1 Robust package design
- 100% UIL tested
