FK3306010L - Panasonic

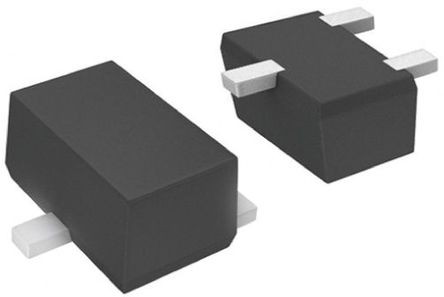

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FK3306010L
Manufacturer

Panasonic
ChipWorker Part#

CW35315593
Category

MOSFET, MOSFET Transistor
Package

SSSMini3-F2-B
Description

SSSMini3-F2-B N-CH 60V 0.1A
Documentation

Datasheet

FK3306010L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FK3306010L Specifications

Attribute	Attribute Value

Part Number	FK3306010L
Manufacturer	Panasonic
ChipWorker Part#	CW35315593
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SSSMini3-F2-B
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	6 Ω
Polarity	N-Channel
Power Dissipation	100 mW
Threshold Voltage	1.2 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	0.1A
Input Capacitance (Ciss)	12pF @3V(Vds)
Input Power (Max)	100 mW
Operating Temperature (Max)	85 ℃
Power Dissipation (Max)	100mW (Ta)
	expand all
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.47 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

N-Channel 60V 100mA (Ta) 100mW (Ta) Surface Mount SSSMini3-F2-B
