FNB41560 - Fairchild

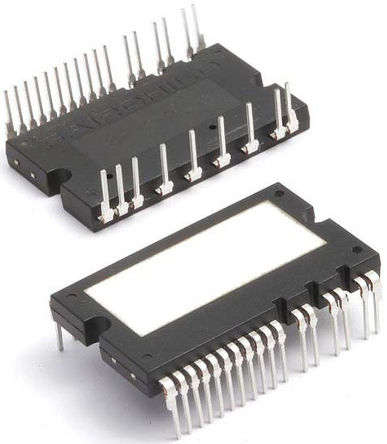

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FNB41560
Manufacturer

Fairchild
ChipWorker Part#

CW75047076
Category

IGBT Transistor, IGBT Module
Package

SPM26-AA
Description

Trans GP BJT NPN 5V 0.025A/0.04A 6Pin ES T/R
Documentation

Datasheet

FNB41560 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FNB41560 Specifications

Attribute	Attribute Value

Part Number	FNB41560
Manufacturer	Fairchild
ChipWorker Part#	CW75047076
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	26 Pin
Case/Package	SPM26-AA
Power Dissipation	34 W
Isolation Voltage	2000 Vrms
Switching Frequency	20 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	34000 mW
	expand all
Size-Length	39.5 mm
Size-Width	23.5 mm
Size-Height	4.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
