FSM1LPTR - TE Connectivity

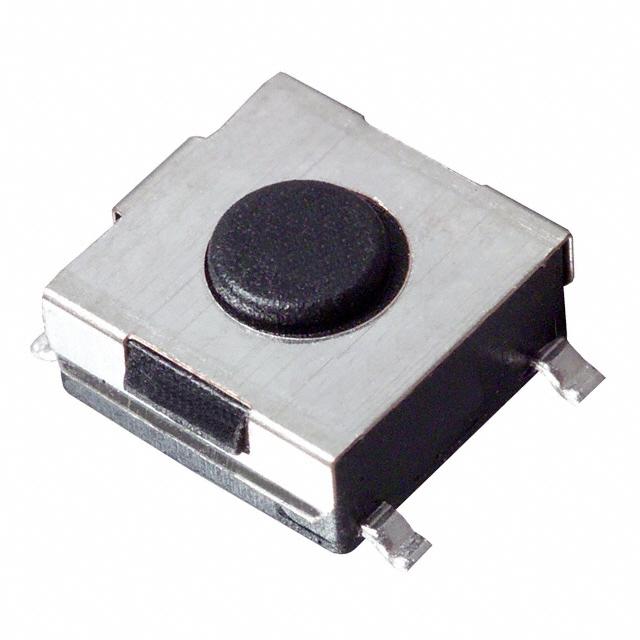

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSM1LPTR
Manufacturer

TE Connectivity
ChipWorker Part#

CW35064503
Category

Tactile Switch, Jog Switch
Description

TE CONNECTIVITY / ALCOSWITCH FSM1LPTR Tactile Switch, Non Illuminated, 24V, 50mA, 160 gf, SMD, FSM Series New
Documentation

Datasheet

FSM1LPTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSM1LPTR Specifications

Attribute	Attribute Value

Part Number	FSM1LPTR
Manufacturer	TE Connectivity
ChipWorker Part#	CW35064503
Category	Tactile Switch, Jog Switch
Documentation	Datasheet
Mounting Style	Surface Mount
Voltage Rating (DC)	24 V
Voltage Rating (AC)	24 V
Current Rating	50 mA
Number of Rows	2 Row
Contact Current Rating	50mA @24VDC
Current Rating (Max)	0.05A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	24 VDC
Voltage Rating (DC Max)	12 V
Maximum Contact Resistance (Max)	100 mΩ
	expand all
Size-Length	6.2 mm
Size-Width	8 mm
Size-Height	3.1 mm
Contact Material	Copper Alloy
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536509032
ECCN Code	EAR99

Product Description

**TE Connectivity FSM Series Tactile Switches**
The professional range of tactile switches from TE Connectivity.
