GBU8M - ON Semiconductor

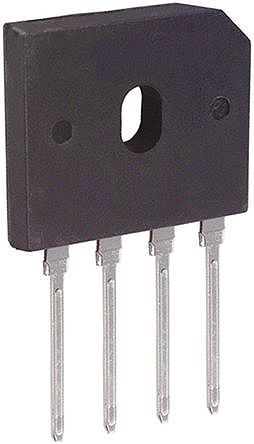

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

GBU8M
Manufacturer

ON Semiconductor
ChipWorker Part#

CW3647782
Category

Bridge Rectifier
Description

Diode Rectifier Bridge Single 1kV 8A 4Pin Case GBU Tube
Documentation

Datasheet

GBU8M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

GBU8M Specifications

Attribute	Attribute Value

Part Number	GBU8M
Manufacturer	ON Semiconductor
ChipWorker Part#	CW3647782
Category	Bridge Rectifier
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Number of Positions	4 Position
Forward Voltage	1 V
Power Dissipation	16000 mW
Forward Current	8 A
Max Forward Surge Current (Ifsm)	200 A
Maximum Forward Voltage (Max)	1V @8A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	16000 mW
	expand all
Size-Length	22.3 mm
Size-Width	18.8 mm
Size-Height	3.56 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The GBU8M is a Bridge Rectifier with moulded plastic construction and glass-passivated junction. This bridge rectifier is general usage and suitable for many different applications.
700V Maximum RMS bridge input voltage
16W Power dissipation
UL Certified
