GP12MCBE ,Pushbutton Switch, Switch Push button - C&K Components

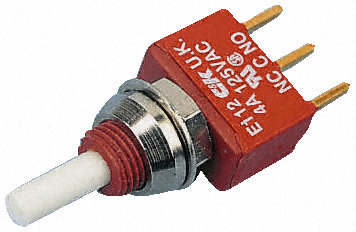

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

110 points

Part No

GP12MCBE
Manufacturer

C&K Components
ChipWorker Part#

CW9627546
Category

Pushbutton Switch, Switch Push button
Package

Through Hole
Description

Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

182151 pcs In Stock
Estimated Price

$ 2.05

Buy GP12MCBE

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

GP12MCBE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

GP12MCBE Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	GP12MCBE
Manufacturer	C&K Components
ChipWorker Part#	CW9627546
Category	Pushbutton Switch, Switch Push button
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	Through Hole
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Insulation Resistance	10 GΩ
Power Rating	0.4 VA
Contacts Type	SPDT
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<50 mΩ
	expand all
Size-Height	5.79 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The GP series sealed ultra miniature Pushbutton Switch with gold over nickel plated copper alloy contacts. It is made of flame-retardant heat stabilized glass filled nylon 4/6 housing and base.
Design saves space
Process compatible, withstands most soldering and washing processes
Through-hole or surface mount
Sealed construction internal O-ring and epoxy base
