HD48125 - Crydom

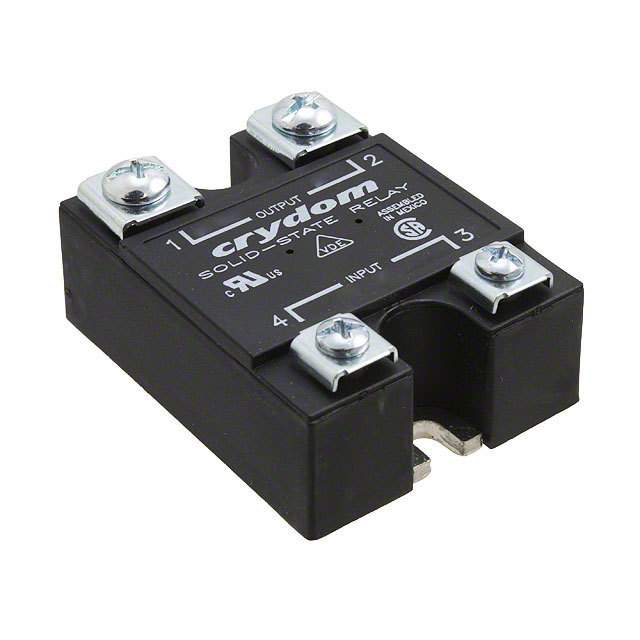

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HD48125
Manufacturer

Crydom
ChipWorker Part#

CW9538438
Category

Solid State Relay
Package

Hockey Puck
Description

Relay SSR 12mA 32V DC-IN 125A 530V AC-OUT 4Pin
Documentation

Datasheet

HD48125 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HD48125 Specifications

Attribute	Attribute Value

Part Number	HD48125
Manufacturer	Crydom
ChipWorker Part#	CW9538438
Category	Solid State Relay
Documentation	Datasheet
Mounting Style	Panel, Screw
Number of Pins	4 Pin
Case/Package	Hockey Puck
Current Rating	125 A
Output Voltage	48V ~ 530V
Output Current	125000 mA
Contacts Type	SPST-NO
Load Current	125 A
Input Current	12 mA
Power Dissipation	500 mW
Resistance	1500 Ω
Isolation Voltage	4000 v
Output Voltage (Max)	530 V
Output Current (Max)	125 A
Load Current (Max)	125 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	530 VAC
Operating Voltage (Min)	48 Vrms
Operating Voltage (Max)	530 Vrms
Input Voltage	32 V
	expand all
Size-Length	45.7 mm
Size-Width	45.7 mm
Size-Height	23 mm
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536490080
ECCN Code	EAR99

Product Description

SPST-NO Contact Form, SCR Output, Panel Mounted Solid-State Relays
** 12-125 Amp; 480, 600 VAC; AC Output**
Crydom"s HA (AC control) and HD (DC control) relays incorporate the same proven technologies as our Series 1. All models come with 1200 V blocking as standard and are available in either zero-cross or random turn-on and phase controllable (-10) switching versions.* Operating Temperature Range:** –30°C to 80°C. ** Isolation Voltage (V RMS ):** 4000\. ** Options Available on Special Order:** Non-zero cross, phase controllable and 24 VAC input (18-36 VAC).
** Features**
* AC or DC Control, 1200 Volt Blocking
* Zero Voltage Switching
* UL, CSA, VDE Approved
