HLC1395-002 ,Photoelectric Sensor - Honeywell

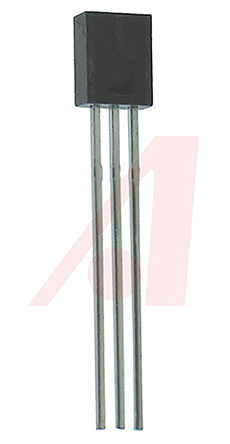

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
113 points
-
Part NoHLC1395-002
-
ManufacturerHoneywell
-
ChipWorker Part#CW11677100
-
CategoryPhotoelectric Sensor
-
PackageSIP
-
DescriptionDiffuse Photoelectric Sensor, 1mm Min, 1mm Max, Rectangular, Through Hole Mount, PLASTIC PACKAGE-3
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие763 pcs In Stock
-
Estimated Price$ 3.48
Payment Methods and Delivery
{{ estimate }}
Buy HLC1395-002
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
HLC1395-002 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
HLC1395-002 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | HLC1395-002 | |
| Manufacturer | Honeywell | |
| ChipWorker Part# | CW11677100 | |
| Category | Photoelectric Sensor | |
| Documentation | Datasheet | |
| Mounting Style | Through Hole | |
| Number of Pins | 3 Pin | |
| Case/Package | SIP | |
| Voltage Rating (DC) | 30.0 V | |
| Output Voltage | ≤30.0 V | |
| Output Current | 1.00 mA | |
| Breakdown Voltage | 3 V | |
| Supply Current | 10.0 mA | |
| Number of Channels | 1 Channel | |
| Forward Voltage | 1.6 V | |
| Input Current | 10.0 mA | |
| Power Dissipation | 100 mW | |
| Rise Time | 15 ns | |
| Breakdown Voltage (Collector to Emitter) | 30 V | |
| Switching Current | 50 mA | |
| Forward Current | 50 mA | |
| Reverse Breakdown Voltage | 3 V | |
| Forward Current (Max) | 50 mA | |
| Fall Time | 15 ns | |
| Fall Time (Max) | 15000 ns | |
| Fall Time (Max) | 15000 ns | |
| Operating Temperature (Max) | 85 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Power Dissipation (Max) | 100 mW | |
| Supply Voltage | 1.6 V | |
| expand all | ||
| Size-Length | 4.45 mm | |
| Size-Width | 2.21 mm | |
| Size-Height | 5.72 mm | |
| Operating Temperature | -40℃ ~ 85℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Bulk | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| HTS Code | 8541408000 | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- The HLC1395-002 is an Infrared Reflective Sensor with phototransistor output. The HLC1395 series is a miniature infrared sensor designed to sense reflective objects at short distances. Both the GaAs IRED and the NPN phototransistor are mounted side-by-side in a single black plastic package with an integral barrier to minimize crosstalk. The sensor is configured with the IRED cathode and the phototransistor emitter connected to a common lead. The housing consists of an opaque polysulfone outer shell with transfer-molded, IR-transmissive epoxy encapsulant. Housings are soluble in chlorinated hydrocarbons and ketones. Recommended cleaning agents are methanol and isopropanol.
- Side-looking plastic package
- IR emitter and phototransistor detector in a single package
- Low profile for design flexibility
- Designed for short distance detection
- High sensitivity
- Unfocused for sensing diffused surfaces
