BAS2103WE6327HTSA1 - Infineon

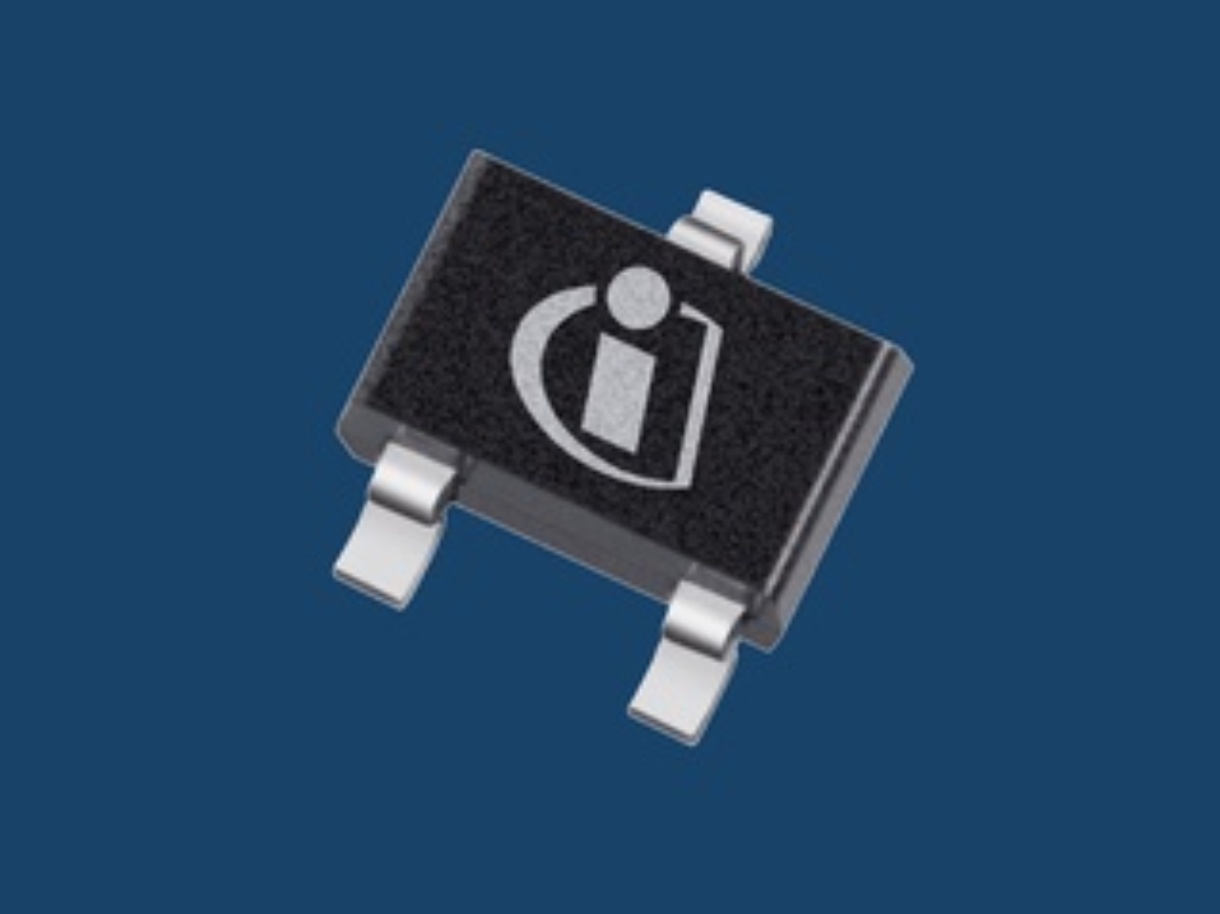

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BAS2103WE6327HTSA1
Manufacturer

Infineon
ChipWorker Part#

CW2400480
Category

Small Signal Diode
Package

SOD-323-2
Description

Diode: switching; SMD; 250V; 0.25A; 0.25W(1/4W); Package: reel, tape
Documentation

Datasheet

BAS2103WE6327HTSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BAS2103WE6327HTSA1 Specifications

Attribute	Attribute Value

Part Number	BAS2103WE6327HTSA1
Manufacturer	Infineon
ChipWorker Part#	CW2400480
Category	Small Signal Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Voltage Rating (DC)	200 V
Current Rating	250 mA
Power Rating	250 mW
Output Current	≤250 mA
Load Current	0.25 A
Number of Positions	2 Position
Forward Voltage	1.25 V
Polarity	Standard
Power Dissipation	250 mW
Reverse recovery time	50 ns
Forward Current	250 mA
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	250 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	250 mW
	expand all
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BAS 21-03W E6327 is a general purpose silicon Switching Diode features high breakdown voltage. It is suitable for high-speed switching applications.
Electrical insulated diodes
Pb-free package
Qualified according AEC Q101
