HMC385LP4E - ADI

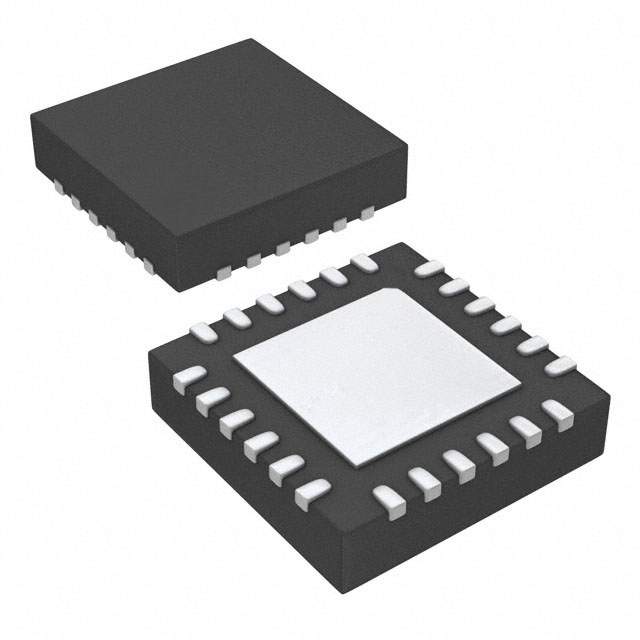

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMC385LP4E
Manufacturer

ADI
ChipWorker Part#

CW1469185
Category

Amplifier chip
Package

QFN-24
Description

Oscillator VCO 2250MHz to 2500MHz 3V 24Pin QFN EP SMD T/R
Documentation

Datasheet

HMC385LP4E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMC385LP4E Specifications

Attribute	Attribute Value

Part Number	HMC385LP4E
Manufacturer	ADI
ChipWorker Part#	CW1469185
Category	Amplifier chip
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	QFN-24
Frequency	2.25GHz ~ 2.5GHz
Supply Current	35 mA
Test Frequency	2.5 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3 V
	expand all
Size-Length	4.1 mm
Size-Width	4.1 mm
Size-Height	1 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

* Pout: +4.5 dBm * Phase Noise: -115 dBc/Hz @100 KHz * No External Resonator Needed * Single Supply: 3V @ 35 mA * QFN Leadless SMT Package, 16 mm2
