HMC427LP3E - ADI

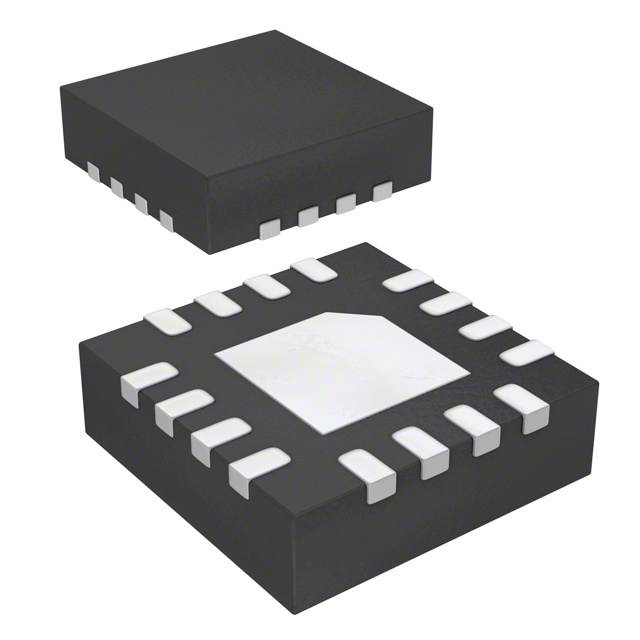

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMC427LP3E
Manufacturer

ADI
ChipWorker Part#

CW28579975
Category

RF Module
Package

QFN-16
Description

ANALOG DEVICES HMC427LP3E RF Switch IC, Positive Control Transfer Switch, DC to 8GHz, +5V, HVQFN-16
Documentation

Datasheet

HMC427LP3E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMC427LP3E Specifications

Attribute	Attribute Value

Part Number	HMC427LP3E
Manufacturer	ADI
ChipWorker Part#	CW28579975
Category	RF Module
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Frequency	8000 MHz
Supply Voltage (DC)	5.00V (max)
Number of Positions	16 Position
Test Frequency	8 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
Supply Voltage (Max)	5 VDC
	expand all
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17

Product Description

The HMC427LP3E is a low loss broadband positive Control Transfer Switch which operates between DC to 8GHz, this switch offers high isolation and low insertion loss. The switch operates using a positive control voltage of 0/+5V and requires a fixed bias of +5V at <20µA.
40 to 45dB thru 6GHz High isolation
1.2dB at 6GHz Low insertion loss
Non-reflective design
