HMC601LP4E ,Detector chip - ADI

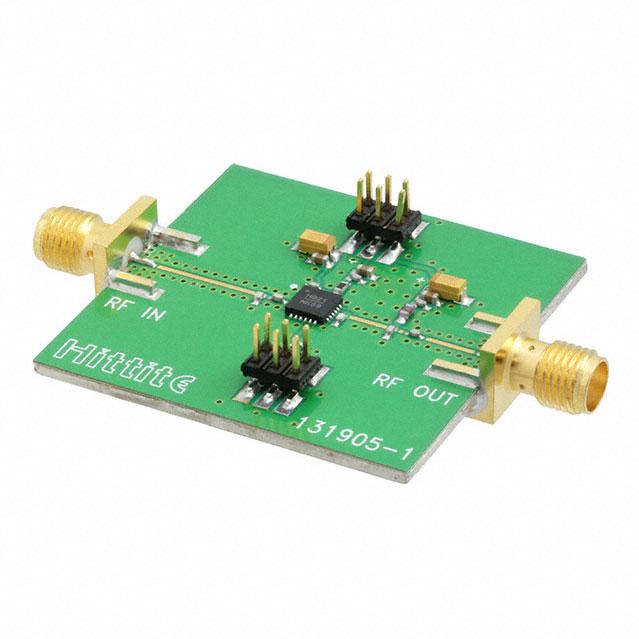

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

118 points

Part No

HMC601LP4E
Manufacturer

ADI
ChipWorker Part#

CW4437729
Category

Detector chip
Package

QFN-24
Description

RF Detector 10MHz to 4000MHz 12dBm 24Pin QFN EP T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

79749 pcs In Stock
Estimated Price

$ 0.21

Buy HMC601LP4E

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HMC601LP4E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HMC601LP4E Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HMC601LP4E
Manufacturer	ADI
ChipWorker Part#	CW4437729
Category	Detector chip
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	QFN-24
Frequency	10MHz ~ 4GHz
Supply Current	30 mA
Number of Positions	24 Position
Power Dissipation	320 mW
Thermal Resistance	126 ℃/W
Input Power (Max)	12 dBm
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	320 mW
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Product Details
The HMC601LP4(E) Logarithmic Detector/Controller converts RF signals at its input, to a proportional DC voltage at its output. The HMC601LP4(E) employ a successive compression topology which delivers extremely high dynamic range and conversion accuracy over a wide input frequency range. As the input power is increased, successive amplifiers move into saturation one by one creating an accurate approximation of the logarithm function.
The output of a series of square law detectors is summed, converted into voltage domain and buffered to drive the LOGOUT output. For detection mode, the LOGOUT pin is shorted to the VSET input, and will provide a nominal logarithmic slope of 19mV/dB and an intercept of -100 dBm. The HMC601LP4(E) can also be used in the controller mode where an external voltage is applied to the VSET pin, to create an AGC or APC feedback loop. The HMC601LP4(E) provides a 15/34ns (rise/fall time) response time enabling RF burst detection to a pulse rate beyond 20 MHz.
Applications
Cellular/PCS/3G
WiMAX, WiBro & Fixed Wireless
Power Monitoring & Control Circuitry
Receiver Signal Strength Indication (RSSI)
Automatic Gain & Power Control Circuits
### Features and Benefits
Wide Dynamic Range: up to 75 dB
Fast Pulse Response: 15/34ns (Rise/Fall Time)
Flexible Supply Voltage:
+2.7V to +5.5V
Power-Down Mode
Excellent Stability over Temperature
4x4mm Leadless SMT Package
