ICM7218BIJI - Intersil

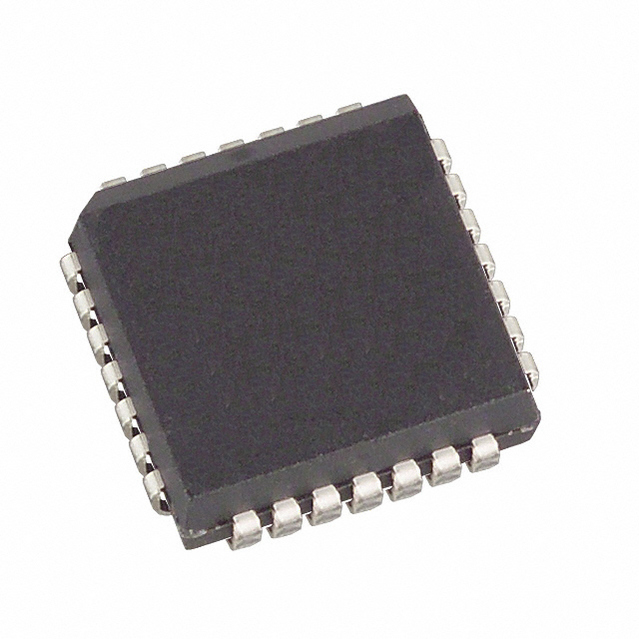

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ICM7218BIJI
Manufacturer

Intersil
ChipWorker Part#

CW75731633
Category

LED Driver, LED Display Driver
Package

CDIP-28
Description

INTERSIL ICM7218BIJI LED Driver, 4V to 6V input, 16Outputs, 50mA out, DIP-28
Documentation

Datasheet

ICM7218BIJI Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

ICM7218BIJI Specifications

Attribute	Attribute Value

Part Number	ICM7218BIJI
Manufacturer	Intersil
ChipWorker Part#	CW75731633
Category	LED Driver, LED Display Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	CDIP-28
Supply Voltage (DC)	5.50V (max)
Number of Outputs	16 Output
Input Voltage (DC)	4.00V ~ 6.00V
Output Current	50 mA
Supply Current	700 µA
Number of Positions	28 Position
Input Voltage (Max)	6 V
Input Voltage (Min)	2 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4V ~ 6V
	expand all
Size-Length	37.85 mm
Size-Width	15.49 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The ICM7218BIJI is a 8-digit LED microprocessor-compatible multiplexed display Decoder Driver with marking. The universal LED driver system provides the circuitry necessary to interface most common microprocessors or digital systems to an LED display. Included on-chip are an 8-byte static display memory, two types of 7-segment decoders, multiplex scan circuitry and high current digit and segment drivers for either common cathode or common anode displays. The 1CM7218B features two control lines which write 8-bit of display input data. Display data is automatically sequenced into the 8-byte internal memory on successive positive going WRITE pulses. Data may be displayed either directly or decoded in Hexadecimal or Code B formats. It features two control lines, 4 separate display data input lines and 3-digit address lines. Display data is written into the internal memory by setting up a digit address and strobing the WRITE line low.
Output drive suitable for LED displays directly
Data retention to 2V Supply
Shutdown turns OFF display and puts chip into low power dissipation mode
Decimal point drive on each digit
Common cathode display

expand all
