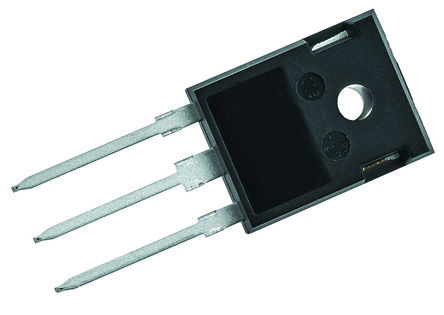

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IKW50N65F5
Manufacturer

Infineon
ChipWorker Part#

CW26216295
Category

IGBT Transistor, IGBT Module
Package

TO-247-3
Description

Trans IGBT Chip N-CH 650V 80A 305000mW 3Pin(3+Tab) TO-247 Tube
Documentation

Datasheet

IKW50N65F5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IKW50N65F5 Specifications

Attribute	Attribute Value

Part Number	IKW50N65F5
Manufacturer	Infineon
ChipWorker Part#	CW26216295
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Rating	305 W
Number of Positions	3 Position
Power Dissipation	305 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	305 W
	expand all
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	PB free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Summary of Features:
650V breakthrough voltage
Compared to Infineon’s best-in-class HighSpeed 3 family
Factor 2.5 lower Q g
Factor 2 reduction in switching losses
200mV reduction in V CE(sat)
Co-packed with Infineon’s new Rapid Si-diode technology
Low C OES/E OSS
Mild positive temperature coefficient V CE(sat)
Temperature stability of V f
Benefits:
Best-in-class efficiency, resulting in lower junction and
case temperature leading to higher device reliability
50V increase in the bus voltage possible without compromising
reliability
Higher power density design
Target Applications:
Uninterruptible Power Supplies
Welding
