IMN11T110 - ROHM Semiconductor

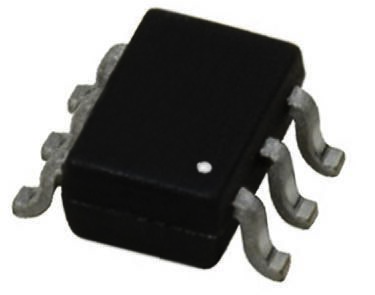

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IMN11T110
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW38800536
Category

Diode Array, TVS Diode Array
Package

SMD-457
Description

IMN11 Series 100mA 80V 300mW Switching Diode Surface Mount - SOT-457
Documentation

Datasheet

IMN11T110 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IMN11T110 Specifications

Attribute	Attribute Value

Part Number	IMN11T110
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW38800536
Category	Diode Array, TVS Diode Array
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SMD-457
Voltage Rating (DC)	80.0 V
Current Rating	100 mA
Capacitance	3.50 pF
Output Current	≤100 mA
Forward Voltage	1.2 V
Power Dissipation	300 mW
Reverse recovery time	4 ns
Forward Current	300 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1.2V @100mA
Forward Current (Max)	100 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	300 mW
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

IMN11 Series 80 V 300 mA SMD Ultra High-Speed Switching Diode-SOT-457
