INA322EA - TI

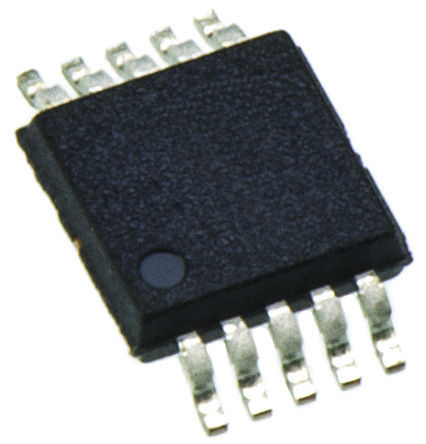

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

INA322EA
Manufacturer

TI
ChipWorker Part#

CW435527821
RoHS

Lead free / RoHS Compliant
Description

microPower, Single-Supply, CMOS NTATION AMPLIFIER
Documentation

Datasheet

INA322EA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

INA322EA Specifications

Attribute	Attribute Value

Part Number	INA322EA
Manufacturer	TI
ChipWorker Part#	CW435527821
Documentation	Datasheet
Mounting Style	Surface Mount

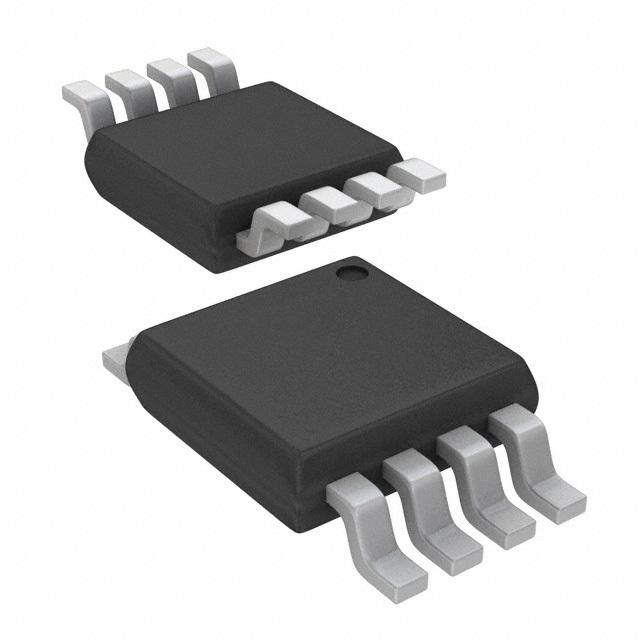

Case/Package	MSOP-8
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DESCRIPTION
The INA322 family is a series of low cost, rail-to-rail output, micropower CMOS instrumentation amplifiers that offer wide-range, single-supply, as well as bipolar supply operation.
FEATURES
●LOW COST
●LOW QUIESCENT CURRENT: 40µA/channel Shut Down: < 1µA
●HIGH GAIN ACCURACY: G = 5, 0.07%, 2ppm/°C
●GAIN SET WITH EXTERNAL RESISTORS
●LOW BIAS CURRENT: 10pA
●BANDWIDTH: 500kHz, G = 5V/V
●RAIL-TO-RAIL OUTPUT SWING: (V+) – 0.02V
●WIDE TEMPERATURE RANGE: –55°C to +125°C
●SINGLE VERSION IN MSOP-8 PACKAGE AND DUAL VERSION IN TSSOP-14 PACKAGE
APPLICATIONS
● INDUSTRIAL SENSOR AMPLIFIERS: Bridge, RTD, Thermistor, Position
●PHYSIOLOGICAL AMPLIFIERS: ECG, EEG, EMG
●A/D CONVERTER SIGNAL CONDITIONING
●DIFFERENTIAL LINE RECEIVERS WITH GAIN
●FIELD UTILITY METERS
●PCMCIA CARDS
●COMMUNICATION SYSTEMS
●TEST EQUIPMENT
●AUTOMOTIVE INSTRUMENTATION
