IPB60R099C6 - Infineon

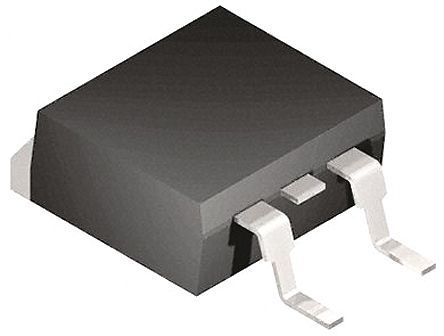

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPB60R099C6
Manufacturer

Infineon
ChipWorker Part#

CW11283034
Category

MOSFET, MOSFET Transistor
Package

TO-263-3
Description

D2PAK N-CH 600V 37.9A
Documentation

Datasheet

IPB60R099C6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPB60R099C6 Specifications

Attribute	Attribute Value

Part Number	IPB60R099C6
Manufacturer	Infineon
ChipWorker Part#	CW11283034
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Power Rating	278 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.09 Ω
Polarity	N-Channel
Power Dissipation	278 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	37.9A
Rise Time	12 ns
Input Capacitance (Ciss)	2660pF @100V(Vds)
Input Power (Max)	278 W
Fall Time	6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	278W (Tc)
	expand all
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Description:
CoolMOS™ C6 combines Infineon"s experience as the leading superjunction MOSFET supplier with best-in-class innovation. The C6 devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler.
**600V CoolMOS™ C6 is replacement for 600V CoolMOS™ C3**
**650V CoolMOS™ C6 is replacement for 650V CoolMOS™ C3**
Summary of Features:
Easy control of switching behavior
Extremely low losses due to very low Figure of Merit (R DS(on)* Q g and E oss)
Very high commutation ruggedness
Easy to use
Better light load efficiency compared to C3
Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness
Better price performance in comparison to previous CoolMOS™ generations
More efficient, more compact, lighter and cooler
Benefits:
Improved power density
Improved reliability
General purpose part can be used in both soft and hard switching topologies
Better light load effciency
Improved effciency in hard switching applications
Improved ease-of-use
Reduces possible ringing due to pcb layout and package parasitic effects
Target Applications:
Consumer
Adapter
eMobility
PFC stages for server & telecom
SMPS
PC power
Solar
Lighting
