IPL65R230C7 ,MOSFET, MOSFET Transistor - Infineon

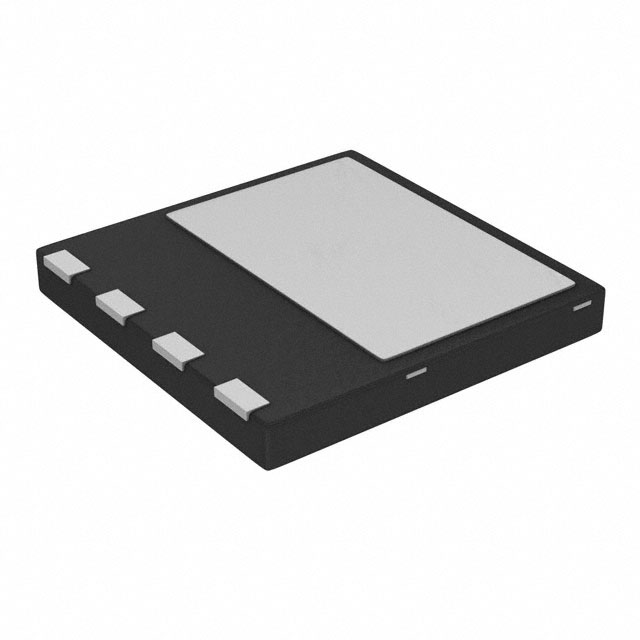

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

37 points

Part No

IPL65R230C7
Manufacturer

Infineon
ChipWorker Part#

CW87935658
Category

MOSFET, MOSFET Transistor
Package

VSON-4
Description

VSON N-CH 650V 10A
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.69

Buy IPL65R230C7

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IPL65R230C7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IPL65R230C7 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IPL65R230C7
Manufacturer	Infineon
ChipWorker Part#	CW87935658
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	VSON-4
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	230 mΩ
Polarity	N-CH
Power Dissipation	67 W
Threshold Voltage	3V ~ 4V
Drain to Source Voltage (Vds)	650 V
Breakdown Voltage (Drain to Source)	650 V
Continuous Drain Current (Ids)	10A
Rise Time	5 ns
Input Capacitance (Ciss)	996pF @400V(Vds)
Fall Time	22 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	67000 mW
	expand all
Size-Length	8 mm
Size-Width	8 mm
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

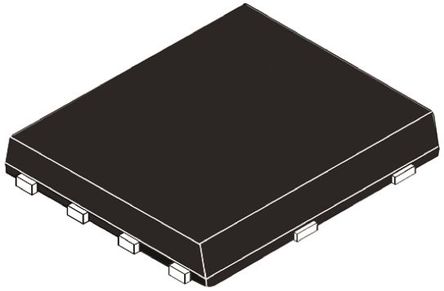

Similar products

Product Description

Summary of Features:
650V voltage
Revolutionary best-in-class R DS(on)/package
Reduced energy stored in output capacitance (Eoss)
Lower gate charge Qg
Space saving through use of smaller packages or reduction of parts
12 years manufacturing experience in superjunction technology
Benefits:
Improved safety margin and suitable for both SMPS and solar inverter applications
Lowest conduction losses/package
Low switching losses
Better light load efficiency
Increasing power density
Outstanding CoolMOS™ quality
Target Applications:
Telecom
Server
Solar
PC power
