IPW65R310CFD - Infineon

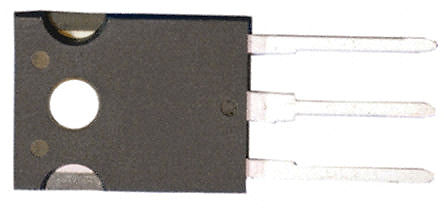

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPW65R310CFD
Manufacturer

Infineon
ChipWorker Part#

CW140683148
Category

MOSFET, MOSFET Transistor
Package

TO-247-3
Description

TO-247 N-CH 700V 11.4A
Documentation

Datasheet

IPW65R310CFD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPW65R310CFD Specifications

Attribute	Attribute Value

Part Number	IPW65R310CFD
Manufacturer	Infineon
ChipWorker Part#	CW140683148
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	310 mΩ
Polarity	N-CH
Power Dissipation	104.2 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	700 V
Breakdown Voltage (Drain to Source)	650 V
Continuous Drain Current (Ids)	11.4A
Rise Time	7.5 ns
Input Capacitance (Ciss)	1100pF @100V(Vds)
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	104.2 W
	expand all
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
