IR2136J ,FET Driver - International Rectifier

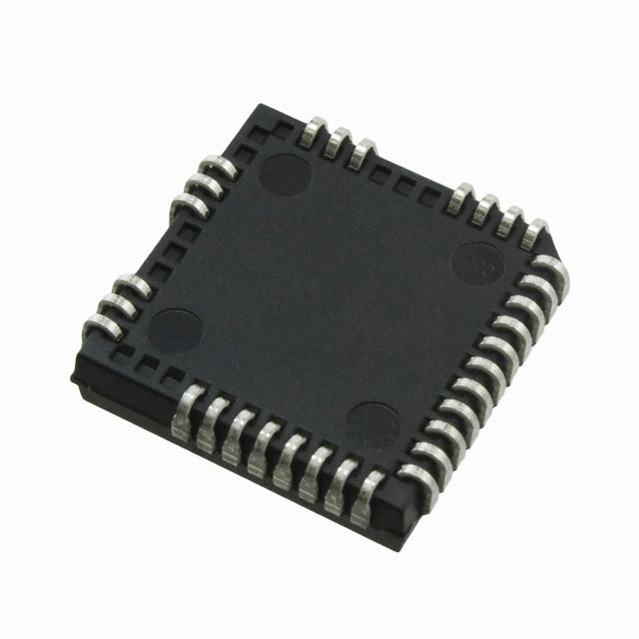

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

35 points

Part No

IR2136J
Manufacturer

International Rectifier
ChipWorker Part#

CW497781270
Category

FET Driver
Package

PLCC-44
Description

3 Phase Driver, Soft Turn-on, Inverting Input Separate High and Low Side Inputs, 200ns Deadtime in a mod. 44-lead PLCC package
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy IR2136J

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IR2136J Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IR2136J Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IR2136J
Manufacturer	International Rectifier
ChipWorker Part#	CW497781270
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	PLCC-44
Supply Voltage (DC)	20.0V (max)
Number of Outputs	3 Output
Output Voltage	≥10.0 V
Part Family	IR2136
Supply Voltage	10V ~ 20V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Similar & Replacement Parts

Product Description

Description
The IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368(J&S) are high votage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. A current trip function which terminates all six outputs can be derived from an external current sense resistor. An enable function is available to terminate all six outputs simultaneously.
Features
•Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage - dV/dt immune
•Gate drive supply range from 10 to 20V (IR2136/IR21368)
11.5 to 20V (IR21362) or 12 to 20V (IR21363/IR21365/IR21366/IR21367)
•Undervoltage lockout for all channels
•Over-current shutdown turns off all six drivers
•Independent 3 half-bridge drivers
•Matched propagation delay for all channels
•Cross-conduction prevention logic
•Lowside outputs out of phase with inputs. High side outputs out of phase (IR2136/IR21363/IR21365/
IR21366/IR21367/IR21368) or in phase (IR21362) with inputs.
•3.3V logic compatible
•Lower di/dt gate driver for better noise immunity
•Externally programmable delay for automatic fault clear
•Also available LEAD-FREE
