IRF640PBF - VISHAY

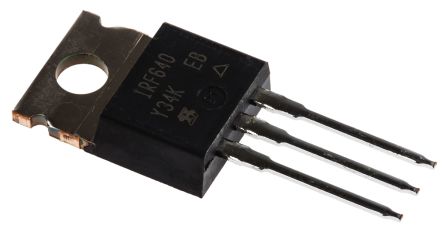

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF640PBF
Manufacturer

VISHAY
ChipWorker Part#

CW5182669
Category

MOSFET, MOSFET Transistor
RoHS

Lead free / RoHS Compliant
Description

TO-220-3 N-CH 200V 18A 180mΩ
Documentation

Datasheet

IRF640PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF640PBF Specifications

Attribute	Attribute Value

Part Number	IRF640PBF
Manufacturer	VISHAY
ChipWorker Part#	CW5182669
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	200 V
Current Rating	18.0 A
Power Rating	125 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.18 Ω
Polarity	N-Channel
Power Dissipation	125 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	18.0 A
Rise Time	17 ns
Input Capacitance (Ciss)	1300pF @25V(Vds)
Input Power (Max)	125 W
Fall Time	8.9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125 W
	expand all
Size-Length	10.41 mm
Size-Width	4.7 mm
Size-Height	9.01 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	50
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

Single N-Channel 200 V 0.18 Ohms Flange Mount Power Mosfet - TO-220-3
